Product Description

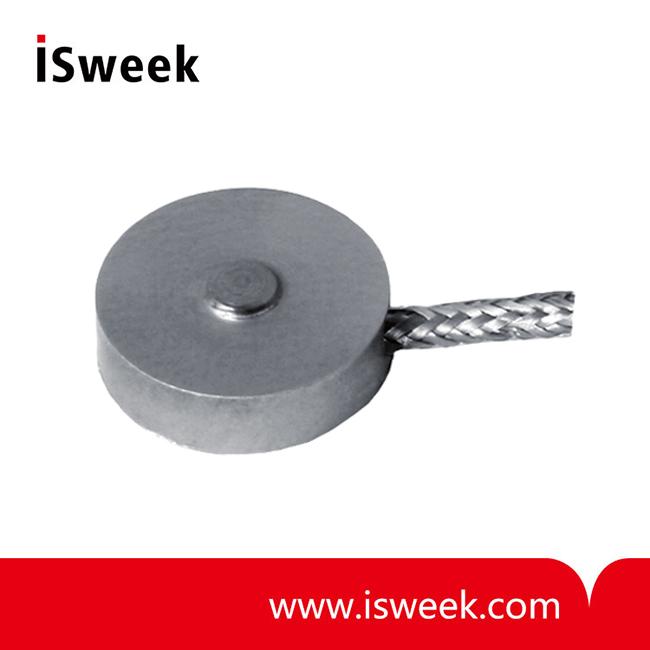

XLC86 Subminiature Compression Load Cell Model



XLC86 Compression Load Cell Model Measuring ranges
• 0-50 g to 0-1,000 lbs

XLC86 Compression Load Cell Model Features
• Very Small Size
• 1.00% Accuracy
• Ease of Installation

XLC86 Compression Load Cell Model Options
• Overload Protection
• Extended Compensated Temperature Range
• Inline Amplifier
• Cable Length

XLC86 Compression Load Cell Model Drawing

• 99-2634-0000


XLC86 Compression Load Cell Model Performance Specifications (FSO is Full Scale Output)

EXCITATION
  5 VDC
OUTPUT
50 to 150g
250 to 500g
1000g
5 to 1000lb


 0.1 mV/V/g
 10 mV/V
 1.0 mV/V
 2 mV/V Nominal

LINEARITY
50 to 500g
1000g to 1000lb


 ±1.00% FSO
 ±1.00% FSO

HYSTERESIS
50 to 500g
1000g to 1000lb


 ±0.50% FSO
 ±0.50% FSO

REPEATABILITY
  ±0.10% FSO
ZERO BALANCE
  ±2% FSO
OPERATING TEMP RANGE
  -65 to +250°F (-54 to +121°C)
COMPENSATED TEMP RANGE
  +65 to +160°F (+15 to +71°C)
THERMAL EFFECTS
on Zero
on Span


 ±0.01% FSO/°F
 ±0.02% Reading/°F

SAFE OVERLOAD
  150% of Capacity
ULTIMATE OVERLOAD
  300% of Capacity
BRIDGE RESISTANCE
50 to 500g
1000g to 1000lb


 500 Ohms (semiconductor)
 350 Ohms (foil)

CASING MATERIAL
  Stainless Steel

Capacity (gram/lbs)
  Ordering Example
50 grams
  XLC86-050G
1,000 grams
  XLC86-01KG
10 lbs
  XLC86-0010
250 lbs
  XLC86-0250
1,000 lbs
  XLC86-001K

Ranges (gram/lbs)
 D A B
0 - 50 to 0 - 500 grams
 .38
 .09
 .13
0-1,000 grams to 0-50 lbs
 .38
 .09
 .13
0-100 to 0-250 lbs
 .50
 .12
 .15
0-500 to 0-1,000 lbs
 .75
 .25
 .25
