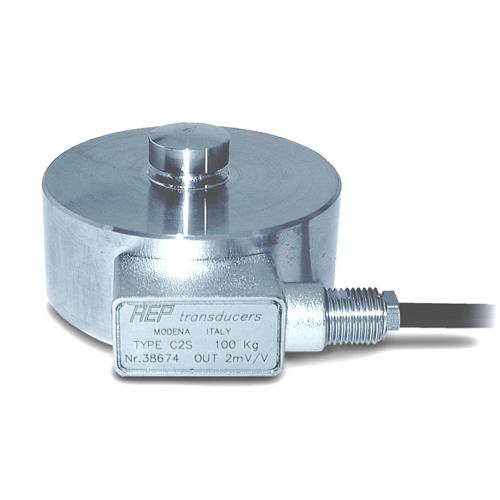

100kg to 200t Load Cell

Dimensions [mm]

Technical Data

ACCURACY CLASS: OIML R60	C1	C2		C3
LEGAL DIVISIONS	1000	2000		3000
NOMINAL LOAD (E_max)	100-250-500 kg 1-2.5-5-7.5-10-20-30-50-75-100-150^♢ -200^♢ t
MINIMUM VERIFICATION INTERVAL (V_min)	E_max / 10000
COMBINED ERROR NON REPEATABILITY ZERO RETURN over 30 min. CREEP at nominal load: a) over 30 min. b) over 20 and 30 min.	≤ ±0.045% ≤ ±0.015% ≤ ±0.036% ≤ ±0.035% ≤ ±0.010%	≤ ±0.023% ≤ ±0.010% ≤ ±0.026% ≤ ±0.028% ≤ ±0.008%		≤ ±0.018% ≤ ±0.008% ≤ ±0.016% ≤ ±0.022% ≤ ±0.005%
TEMPERATURE EFFECT (10 °C) a) on zero b) on sensitivity	≤ ±0.030% ≤ ±0.030%	≤ ±0.024% ≤ ±0.017%		≤ ±0.020% ≤ ±0.010%
NOMINAL SENSITIVITY CALIBRATION TOLERANCE	2mV/V ≤ ±0.1%
INPUT RESISTANCE OUTPUT RESISTANCE INSULATION RESISTANCE ZERO BALANCE RECOMMENDED SUPPLY VOLTAGE NOMINAL SUPPLY VOLTAGE MAXIMUM SUPPLY VOLTAGE	700 ± 2 Ω 700 ± 2 Ω > 5 GΩ ≤ ± 1% 10 V 1-15 V 18 V
MECHANICAL LIMIT values referred to nominal load: a) minimum load b) service load c) max permissible load d) breaking load e) max transverse load f) max permissible dynamic load	0% 120% 150% >300% 50% 50%
NOMINAL LOAD DISPLACEMENT AT NOMINAL LOAD	100kg…10t ~0.06 mm	20t - 30t ~0.16 mm	50t…100t ~0.23 mm	150t - 200t ~0.36 mm
REFERENCE TEMPERATURE TEMPERATURE NOMINAL RANGE SERVICE TEMPERATURE STORAGE TEMPERATURE	+23°C -10/+40 °C -20/+70 °C -20/+80 °C
WEIGHT PROTECTION CLASS (EN 60529) EXECUTION MATERIAL CABLE LENGTH FIXING SCREWS a) diameter b) resistance class c) tightening torque	~1.3 kg	~3.4 kg	~9.4 kg	~18.2 kg
	IP68 (100h at 1m water column) Acciaio Inox / Stainless Steel 5m
	M8 12.9 80 Nm	M8 12.9 80 Nm	M16 12.9 230 Nm	M16 12.9 230 Nm

^♢ C3 class not available for 150t and 200t.
