Product Description

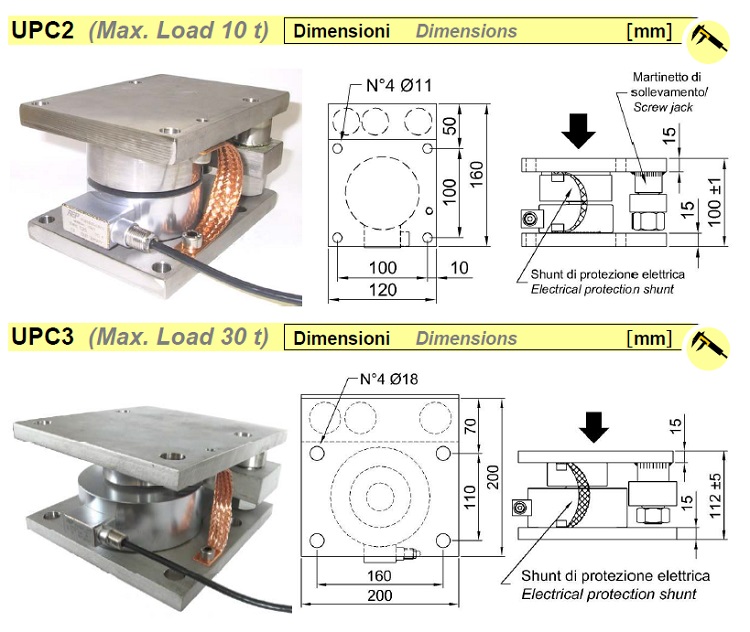

Weighing Unit Nominal Load from 100KG to 30T
This weighing unit, completely executed instainless steel (AISI 304), has been designed to ease the installation of weighing and dosing systems, in tanks, bins and in static or vibrating hoppers.
A CBS or C2S load cell can be paired to UPC2 to obtain an accuracy class of 1000, 2000 or 3000 divisions and an IP68 protection class. The weighing unit is equipped with LOAD SELF ALIGNMENT and TRANSVERSE SHIFT COMPENSATION to ensure HIGH METROLOGICAL PERFORMANCES even in case of adjustments, thermal expansion, positioning errors, transverse thrusts and deformation of structures.
Executed in: Stainless Steel AISI 304.
Equipped with a system of:
Auto-alignment.
Transversal sliding
