Product Description

CK

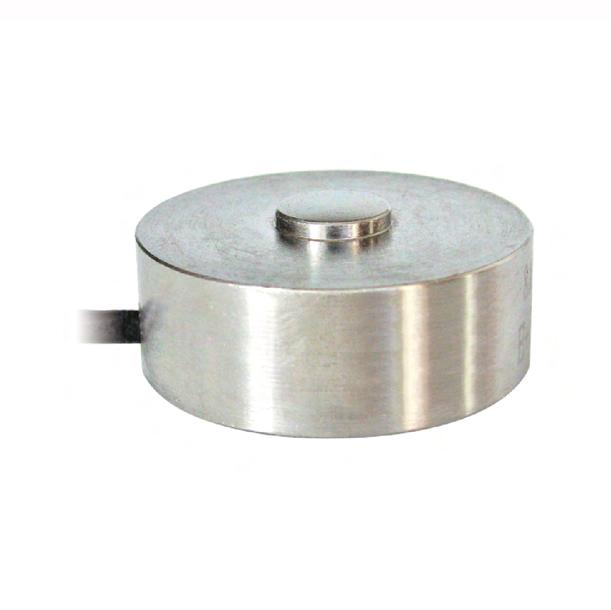

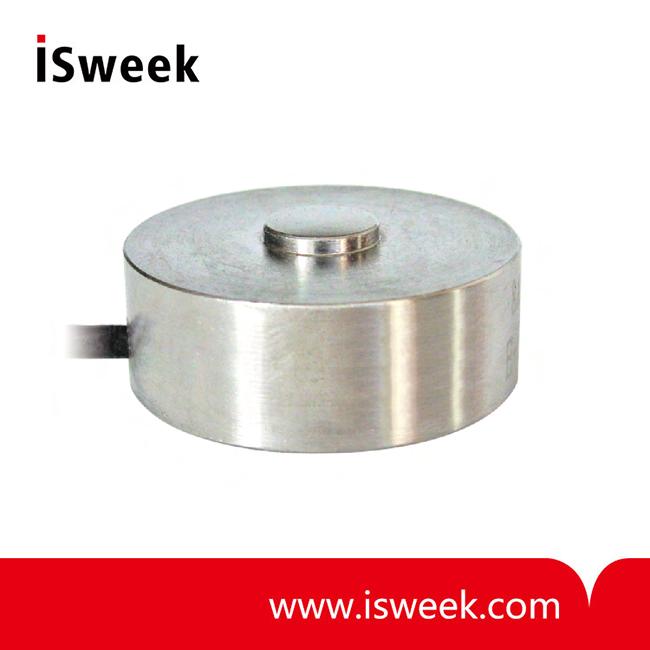

Compression Load Cell  - Low Profile

Capacity from 200 kg to 2500 kg

• 17-4 PH Stainless Steel
• Combined Error ≤ ±0.5%
• Protection Class IP67


CK Compression Load Cell TECHNICAL FEATURES

Material	17-4 PH stainless steel
Nominal load (E max)	200 - 500 - 1000 - 2500 kg
Combined error	≤±0.5%
Protection class	IP67
Rated output	1 mV/V ±15%
Temperature effect on zero	0.005% °C
Temperature effect on span	0.005% °C
Compensated temperature range	-10 °C / +50 °C
Operating temperature range	-20 °C / +70 °C
Creep at nominal load in 30 minutes	0.3%
Max supply voltage without damage	15 V
Input resistance	400 Ω ±100
Output resistance	350 Ω ±5
Zero balance	±1%
Insulation resistance	>5000 MΩ
Safe overload (% of full scale)	120%
Ultimate overload (% of full scale)	200%
Deflection at nominal load	0.3 mm

CK Compression Load Cell ELECTRICAL CONNECTIONS

Cable lenght	5 m
Cable diameter	3 mm
Cores	4/6 x 0.25 mm2
