• 250kg to 100t Low Cost Load Cell
Mouse over image to zoom

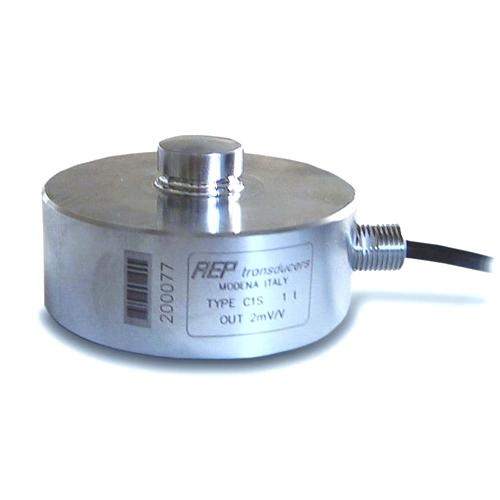

250kg to 100t Low Cost Load Cell

ISweek online 2h ago

ISweek_com

Send Inquiry Chat Now

  • Price

    Price on request   ≥1piece

  • Model Number

    CBS

  • Data Sheet

  • Package

    Original packaging

  • Specs

    CBS

  • Quantity

    - +

  • Send Inquiry

Find Similar Products

Product Description

CBS

250kg to 100t Low Cost Load Cell


Dimensions  [mm]


Technical Data

NOMINAL LOAD (Emax)
 250 - 500 kg
1 - 2.5 - 5 - 7.5 - 10 -15 - 20 - 30 t
50 - 75 -100 t
COMBINED ERROR
NON REPEATABILITY
ZERO RETURN over 30 min.
CREEP at nominal load:
a) over 30 min.
b) over 20 and 30 min.
≤ ±0.03%
≤ ±0.01%

≤ ±0.03%


≤ ±0.03%
≤ ±0.01%
TEMPERATURE EFFECT (10 °C)
a) on zero
b) on sensitivity


≤ ±0.05%
≤ ±0.03%

NOMINAL SENSITIVITY
SENSIVITY TOLERANCE
 2mV/V
≤ ±0.1%
NPUT RESISTANCE
OUTPUT RESISTANCE
INSULATION RESISTANCE
ZERO BALANCE
RECOMMENDED SUPPLY VOLTAGE
NOMINAL SUPPLY VOLTAGE
MAXIMUM SUPPLY VOLTAGE
 700 ± 3 Ω
700 ± 3 Ω
> 5 GΩ
≤ ±1%
10 V
1-15 V
18 V
MECHANICAL LIMIT values referred to
nominal load:
a) minimum load
b) service load
c) max permissible load
d) breaking load
e) max transverse load

f) max permissible dynamic load

DISPLACEMENT AT NOMINAL LOAD



0%
120%
150%
>300%
50%
50%

~0.06 mm    |    ~0.16 mm    |    ~0.23 mm

REFERENCE TEMPERATURE
TEMPERATURE NOMINAL RANGE
SERVICE TEMPERATURE
STORAGE TEMPERATURE
 +23°C
-10/+40 °C
-20/+70 °C
-20/+80 °C

WEIGHT

PROTECTION CLASS (EN 60529)
EXECUTION MATERIAL
CABLE LENGT

~1.2 kg    |    ~2.0 kg    |    ~3.8 kg    |    ~9.4 kg

IP68 (100h at 1m water column)
Acciaio Inox / Stainless Steel
5m
