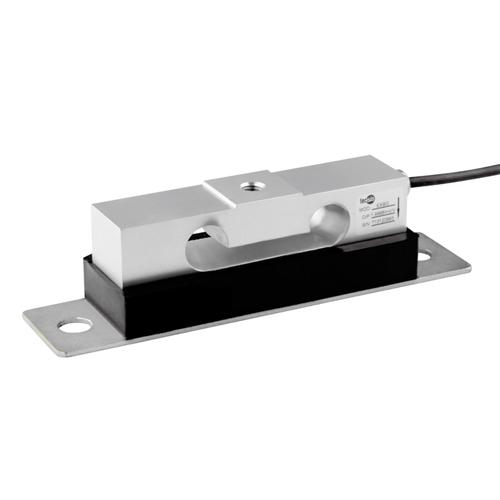

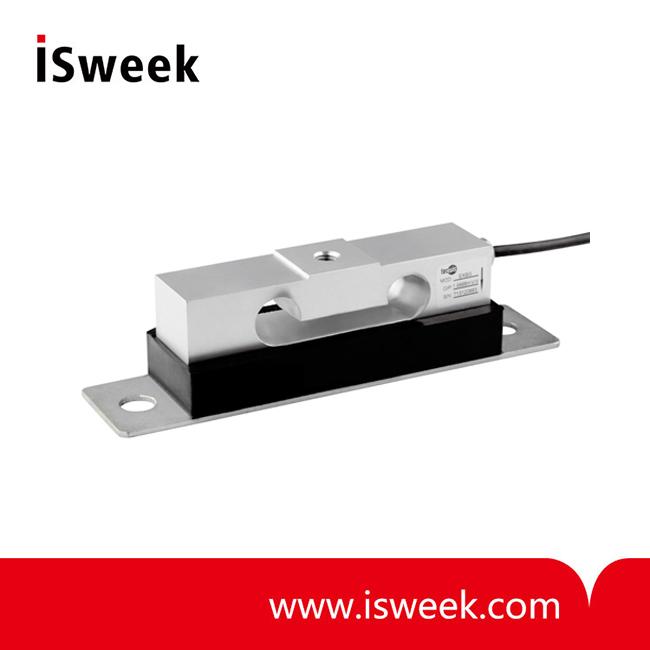

800kg Single Point Parallel Beam Load Cell

ISweek online 2h ago

ISweek_com

Send Inquiry Chat Now

  • Price

    Price on request   ≥1piece

  • Model Number

    F9807

  • Data Sheet

  • Package

    Original packaging

  • Specs

    F9807

  • Quantity

    - +

  • Send Inquiry

Find Similar Products

Product Description

F9807
Single Point Parallel Beam

F9807 Single Point Parallel Beam Load Cell Size and Capacity


F9807 Single Point Parallel Beam Load Cell Features & Applications
• Single point parallel beam load cell
• Made of anodized aluminum and rubber materials
• Shock-proof design, IP65 protection
• Mainly used for elevator overload monitoring

F9807 Single Point Parallel Beam Load Cell Technical Parameters

Specifications

 Technique

Rated output

 2.0±10% mV / V

Non-linearity

 0.05% F.S.

Hysteresis

 0.05% F.S.

Repeatability

 0.05% F.S.

Creep (30min)

 0.05% F.S.

Temp.effect on output

 0.025% F.S. / 10°C

Temp.effect on zero

 0.025% F.S. / 10°C

Input impedance

 410±30Ω

Output impedance

 350±5Ω

Insulation

 ≥5000MΩ/100VDC

Recommended excitation

 10V

Compensated temp range

 -10~40 ºC

Operation temp range

 -20~60ºC

Safe overload

 150% F.S.

Ultimate overload

 250% F.S.

Cable size

 Ø5×6000 mm

Protection class

 IP65

Cable color code

 Input:    Red(+)    Black(-);
 Output: Green(+)  White(-);
