Product Description

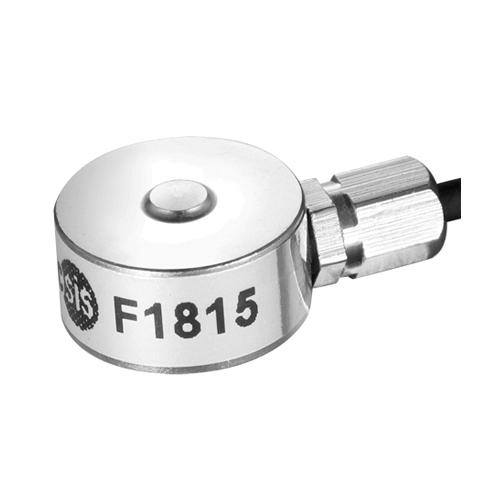

F1815
Compression Load Cell

F1815 Compression Load Cell Size and Capacity


F1815 Compression Load Cell Features & Applications
• Miniature load cell with metal foil strain gauge technology.
• Made of stainless steel.
• Designed for low profile compression service.
• There is an adjustable resistance outside the load cell.
• lts capacities range from 5Kg to 200kg
• It comes complete with 3m of load cell cable.
• The diameter is 13mm.
• Suitable for force measurement in limited spaces.
• Various applications such as consumer electronics assembly, automation industry.

F1815 Compression Load Cell Technical Parameters

Specifications

 Technique

Rated output

 1.5±10% mV / V

Non-linearity

 0.5 % F.S.

Hysteresis

 0.5 % F.S.

Repeatability

 0.1 % F.S.

Temp.effect on output

 0.36 % F.S. / 10ºC

Temp.effect on zero

 0.18 % F.S. / 10ºC

Input impedance

 350±10Ω

Output impedance

 350±5Ω

Insulation

 ≥5000MΩ/100VDC

Recommended excitation

 5 V

Maximum excitation

 7 V

Compensated temp range

 -10 ~ 60ºC

Operation temp range

 -20 ~ 80ºC

Safe overload

 120% F.S.

Ultimate overload

 150 % F.S.

Cable size

 Ø2×3000 mm

Protection class

 IP64

Cable color code

 Input:    Red(+)     Black(-);
 Output: Green(+)  White(-);
