Product Description

F1

2.5kg to 200kg Load Cell

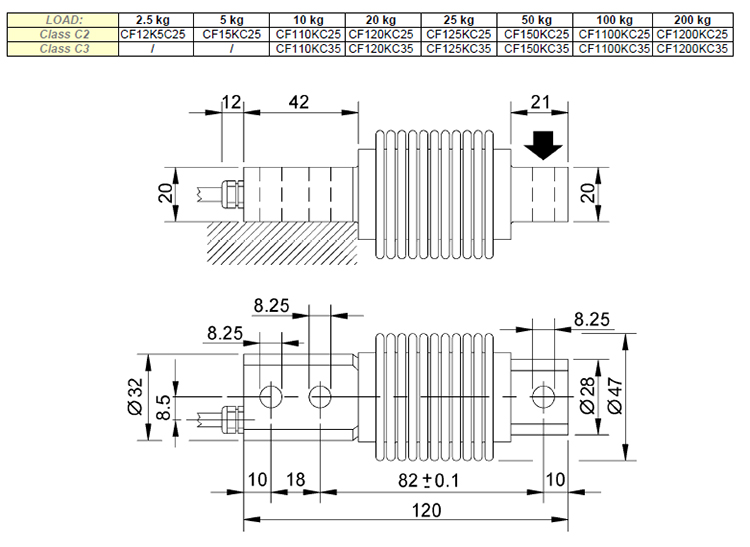

Dimensions  [mm]


Technical Data

ACCURACY CLASS: OIML R60
 C2
 C3
LEGAL DIVISIONS
 2000 3000
NOMINAL LOAD (Emax)
 2.5 - 5 - 10 kg
20 - 25 - 50 kg
100 - 200 kg
 10 - 20 kg
25 - 50 kg
100 - 200 kg
MINIMUM VERIFICATION INTERVAL (Vmin)
 Emax / 10000
COMBINED ERROR
NON REPEATABILITY
ZERO RETURN over 30 min.
CREEP to nominal load:
a) over 30 min.
b) over 20 and 30 min.
 ≤ ± 0.026 %
≤ ± 0.012 %

≤ ± 0.025 %


≤ ± 0.026 %
≤ ± 0.010 %
 ≤ ± 0.020 %
≤ ± 0.010 %

≤ ± 0.015 %


≤ ± 0.012 %
≤ ± 0.009 %
TEMPERATURE EFFECT (10 °C)
a) on zero
b) on sensitivity

≤ ± 0.025 %
≤ ± 0.008 %

≤ ± 0.012 %
≤ ± 0.008 %

NOMINAL SENSITIVITY
SENSIVITY TOLERANCE
2 mV/V
≤ ± 0.1 %
INPUT RESISTANCE
OUTPUT RESISTANCE
INSULATION RESISTANCE
ZERO BALANCE
RECOMMENDED SUPPLY VOLTAGE
NOMINAL SUPPLY VOLTAGE
MAXIMUM SUPPLY VOLTAGE
 420 ± 20 Ω
350 ± 2 Ω
> 5 G Ω
≤ ± 1 %
10 V
1 - 15 V
18 V
MECHANICAL LIMIT VALUES REFERRED TO
NOMINAL LOAD:
a) minimum load
b) service load
c) max permissible load
d) breaking load
e) max transverse load
f) max permissible dynamic load
DISPLACEMENT AT NOMINAL LOAD



0 %
120 %
150 %
> 300 %
200 %
75 %
∼ 0.4 mm

REFERENCE TEMPERATURE
TEMPERATURE NOMINAL RANGE
SERVICE TEMPERATURE
STORAGE TEMPERATURE
 + 23 °C
-10 / +40 °C
-20 / +70 °C
-20 / +80 °C
WEIGHT
 ∼ 0.62 kg
PROTECTION CLASS (EN 60529)
EXECUTION MATERIAL
CABLE LENGTH
 IP67
Acciaio Inox / Stainless Steel
5m
FIXING SCREWS:
a) diameter
b) resistance class
c) tightening torque


M8

12.9
20 Nm
