TS - TSA

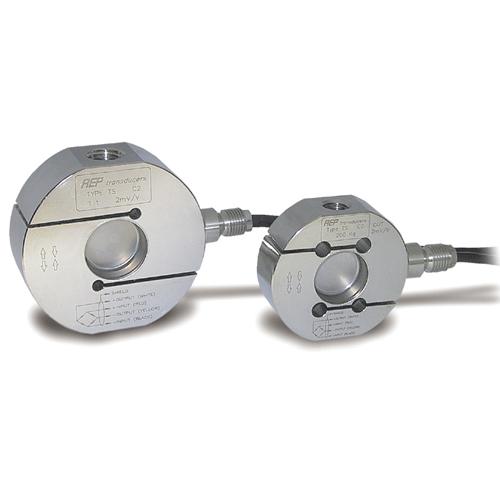

10kg to 10t Load Cell

Dimensions [mm]

Technical Data

ACCURACY CLASS: OIML R60	C2	C3	C4
LEGAL DIVISIONS	2000	3000	4000
NOMINAL LOAD (E_max)	10⁽¹⁾ - 25⁽¹⁾- 5 0⁽¹⁾ kg 100 - 200 - 300 - 500 kg 1 - 2 - 2.5 - 5 - 7.5 - 10⁽¹⁾ t		500 kg 1-2-2.5 t
MINIMUM VERIFICATION INTERVAL (V_min)	E_max / 10000		E_max /15000
COMBINED ERROR NON REPEATABILITY ZERO RETURN over 30 min. CREEP at nominal load: a) over 30 min. b) over 20 and 30 min.	≤ ±0.023% ≤ ±0.015% ≤ ±0.025% ≤ ±0.025% ≤ ±0.005%	≤ ±0.018% ≤ ±0.010% ≤ ±0.015% ≤ ±0.015% ≤ ±0.005%	≤ ±0.015% ≤ ±0.010% ≤ ±0.010% ≤ ±0.015% ≤ ±0.003%
TEMPERATURE EFFECT (10 °C) a) on zero b) on sensitivity	≤ ±0.028% ≤ ±0.012%	≤ ±0.010% ≤ ±0.010%	≤ ±0.008% ≤ ±0.008%
NOMINAL SENSITIVITY SENSIVITY TOLERANCE	2mV/V ≤ ±0.1%
INPUT RESISTANCE OUTPUT RESISTANCE INSULATION RESISTANCE ZERO BALANCE RECOMENDED SUPPLY VOLTAGE NOMINAL SUPPLY VOLTAGE MAXIMUM SUPPLY VOLTAGE	420 ± 20Ω 350 ± 2Ω > 5 GΩ ≤ ±1% 10 V 1-15 V 18 V
MECHANICAL LIMIT values referred to nominal load: a) minimum load b) service load c) max permissible load d) breaking load e) max transverse load f) max permissible dynamic load DISPLACEMENT AT NOMINAL LOAD	0% 120% 150% >300% 100% 50% ∼ 0.2 mm
REFERENCE TEMPERATURE TEMPERATURE NOMINAL RANGE SERVICE TEMPERATURE STORAGE TEMPERATURE	+23°C -10/+40 °C -20/+70 °C -20/+80 °C
WEIGHT PROTECTION CLASS (EN 60529) EXECUTION MATERIAL CABLE LENGTH	ØA=63.5: ∼ 0.6 kg	ØA=82: ∼ 1.2 kg	ØA=102: ∼ 2.6 kg	ØA=127: ~ 4.4 kg
	P68 (100h at 1m water column) IP65 (10, 25, 50 kg silicon cover) Acciaio Inox / Stainless Steel 5m
RECOMMENDED KNUCKLE JOINTS	DURBAL EM12 – EM 17 - EM20 - EM25

⁽¹⁾ ATEX option NOT available.
