• Rod style Position Sensor
Mouse over image to zoom

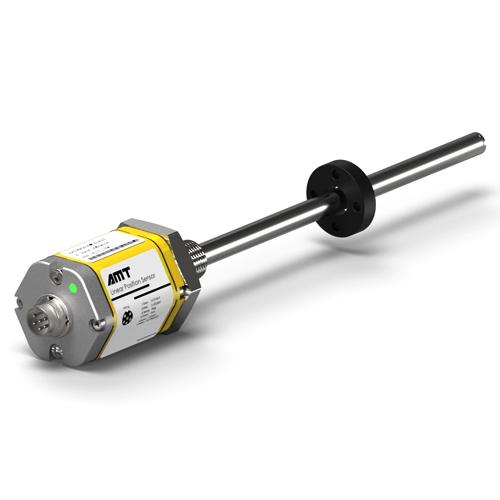

Rod style Position Sensor

ISweek online 2h ago

ISweek_com

Send Inquiry Chat Now

  • Price

    Price on request   ≥1piece

  • Model Number

    KH Series

  • Data Sheet

  • Package

    Original packaging

  • Specs

    KH Series

  • Quantity

    - +

  • Send Inquiry

Find Similar Products

Product Description

Features:
■   Rugged Industrial Sensor
■   Linear, Absolute Measurement
■   Non-Contact Sensing Technology
■   Direct Analog Outputs (Interface Options)
■   Linearity Deviation Less Than ±0.01%
■   Repeatability Within ±0.001%
■   LED For Sensor Diagnostics
■   Velocity Output Options
■   High-Speed Update Options
■   Dual Outputs Options (Current or Voltage)
■   Full Stroke Null/Span adjustment

Interface

Analog

SSI start/stop
Output

4~20mA;  0~10V

25, 24, 26 Binary/Gray RS422

Interface Profibus Canbus
 Modbus
Output Profibus - DP
 Protocal: Basic / Open RS485

Stroke 25mm~7620mm
Accuracy  Linearity Deviation <±0.01%F.S., Repeatability <±0.001%F.S.
Installation M18x1.5 , 3/4" -16UNF-3A
Protection IP67,     Pressure rating: 35MPa / 70MPa peak
Temperature -40℃ ~ +85℃, start/stop:  -40℃ ~ +105℃;
Voltage
 Input : 24VDC (-15/+20%), Polarity protection ,  Overvoltage protection
Magnet OD33;   OD25.4;   OD17.4;  OD63.5


Dimensions:


NO.  Define

 Analog

SSI start/stop Profibus

Canbus

A Connector Height Connector:12mm; Cable: 16mm Connector:16mm; Cable: 18mm
B Head length

68mm

78mm
C

Null Zone

50.8mm
D Dead Zone
 63.5mm
E Rod O.D 7mm; 8mm; 10mm ; 12mm
F Magnet O.D.
 OD17.4; OD20; OD25.4; OD33; OD63.5


Wiring & Diagnostic Display:
