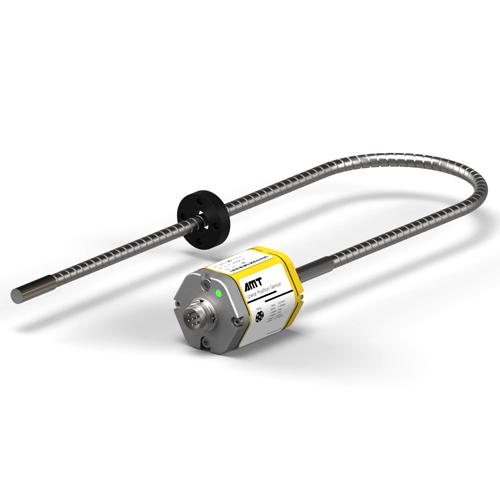

• Position Sensor with Flexible Measuring Rod
Mouse over image to zoom

Position Sensor with Flexible Measuring Rod

ISweek online 2h ago

ISweek_com

Send Inquiry Chat Now

  • Price

    Price on request   ≥1piece

  • Model Number

    KF Series

  • Data Sheet

  • Package

    Original packaging

  • Specs

    KF Series

  • Quantity

    - +

  • Send Inquiry

Find Similar Products

Product Description

Features:
KF series position sensors with flexible measuring rod, are suitable for the occasions where measured travel is large and replaced space is narrow. Products adopt the flexible measuring rod, which can realize both the linear displacement measurement and  the curve displacement measurement. Compared to rigid classifier products, RF series on one hand drastically reduce the space for replaced installation, on the other hand reduce the transport difficulties.

Belong to the same series with RH series, they have features: strong anti-interference ability, wide allowable temperature range (-40℃ - +85℃), non-contact sensing technology, replacement by the convenience, intelligent diagnosis advantages; The products' range can reach over 7600 mm.

Products Data:



Analog output

SSI output

Project name

Parameter/Index

Parameter/Index

Stroke lengths

500-10000mm

500-10000mm

Out put

4~20mADC; 0~10VDC

24,25,26bit Binary or gray yards

Resolution

16bitD/A

2/ 5/ 10/ 20/ 50/100um

Linearity

< ±0.02%F.S. (Minimum ±100μm)

< ±0.02%F.S.  Minimum ±80μm)

Repertability

< ±0.001%F.S. (Minimum ±1μm)

< ±0.001%F.S. ( Minimum ±1 reading)

Frequency response

 Range related

Range related

Input voltage

24VDC (-15/+20%)

Operating temperature

-40℃ ~ +85℃

Protection

Without a protection tube IP30, load, electronic header: IP67

Thread

M4X59 , M18X1.5


Outline dimensions:


Wiring & Diagnostic Display:


Status indicator:
