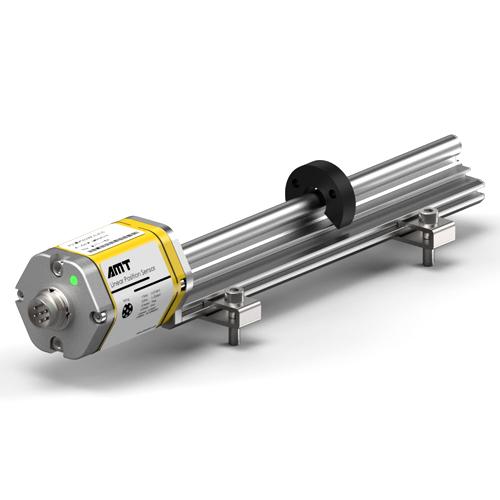

Position Sensor-KP Series
-
Price
Price on request ≥1piece
-
Model Number
KP Series -
Data Sheet
-
Package
Original packaging -
Specs
KP Series -
Quantity
- +Send Inquiry
Find Similar Products
-
Rod style Position Sensor
Model Number：KH Series
MOQ：1
-
Position Sensor with Flexible Measuring Rod
Model Number：KF Series
MOQ：1
-
Probe Divided Linear Position Sensor
Model Number：KD Series
MOQ：1
-
Flange Mounting Position Sensor
Model Number：GB Series
MOQ：1
-
Analog Output Linear Position Sensor
Model Number：MB Series
MOQ：1
-
Position Sensors with Aluminum Guide Rail Type
Model Number：KS series
MOQ：1
Product Description
KP series position sensors which are with aluminum alloy rail, are suitable for linear displacement measuring occasions where needs external installation. The features: wide allowable temperature range, non-contact sensing technology, replacement by convenience, online intelligent diagnosis, etc.
Products Data:
|
|
Analog output |
SSI output |
|
Project name |
Specifications |
Specifications |
|
Measuring range |
25-3500mm |
25-3500mm |
|
Out put |
4~20mA, 0~20mA; 0~10V, -10~+10V |
24/25/26 Bit, Binary or Gray |
|
Resolution |
16bit D/A |
0.5/1/ 2/ 5/ 10/ 20/ 50/ 100um |
|
Linearity |
< ±0.01%F.S.( Minimum ±50μm) |
< ±0.01%F.S.( Minimum ±40μm) |
|
Repertability |
< ±0.001%F.S.( Minimum ±1μm) |
< ±0.001%F.S.( Minimum ±1 reading ) |
|
Frequency response |
Range related |
Range related |
|
Input voltage |
24VDC (-15/+20%) |
|
|
Operating temperature |
-40℃ ~ +85℃ |
|
|
Protection |
IP67 |
|
|
Thread |
Clamp , M5X20 |
|
Outline dimensions:
Electrical connection:
Status indicator:
