Product Description

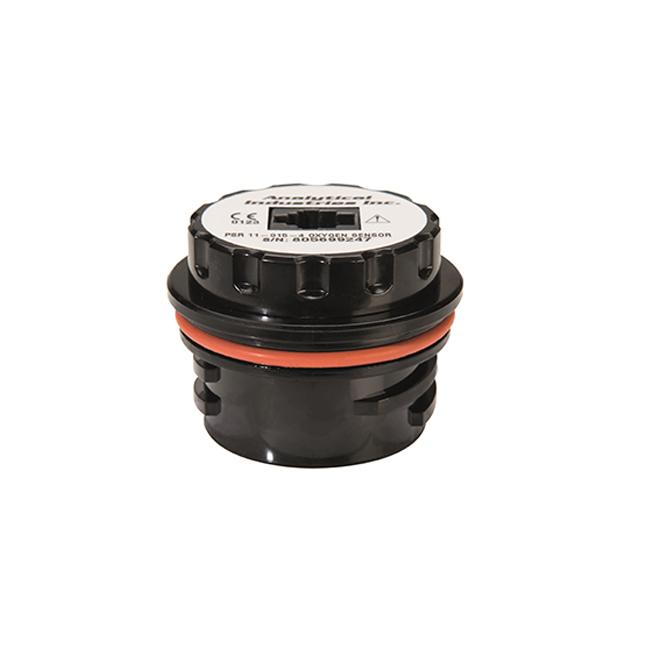

Oxygen Sensor Model PSR-11-915-4 application:


Advanced galvanic type % oxygen sensors with excellent stability and accuracy under stringent applications.

All % oxygen sensors are subjected to the most extensive stability test, output in air, 30” of water column pressure test and stability at 100% oxygen.

The widest range of oxygen sensors offered by Analytical Industries, Inc. are “Made in USA”



Oxygen Sensor Model PSR-11-915-4  Specification：


Measuring Range

0-100% O2

Signal Output

8-13 mV

Accuracy Full Scale

±1%

Response Time 90%

9 Seconds

Accuracy FS Over Operating

Temperature

±5%

Drift % Signal Month

< 1%

Linearity

+ 1%

Temperature Coefficient

Compensated

Operating Temperature

0 to 45°C

Operating Pressure

Constant 5-30 PSIG

Flow Rate

.1-10 LPM

Expected Life

60 Months

Storage

0 to 40°C

Warranty

18months

Electrical Connections

Modular Jack 6P4C

Packaging

Polyetylene bag in

3” x 3” x 1.5” paper box

Recommended Storage

< 6 months


(1) In air @ 25° C and 1 atm. Expected life varies inversely with changes in O2 concentration, temperature, pressure.
(2) Under constant conditions. Calibrate as near sample conditions as possible. Calibrate with 95-100% oxygen for measurements > 40% oxygen.
(3) Once the signal output stabilizes following a step change in temperature.
(4) Recommended 0-40° C. Sensors may be stored at -10 to 55° C on an intermittent basis only.
(5) Ex-factory unless agreed to in writing. Under normal application conditions sensor is warranted to be free of defects in material and workmanship for the period specified above proved the sensor is properly installed and operated. Analytical Industries Inc. shall not be liable for buyer’s negligence, misapplication, alteration or abuse. The sole remedy for a sensor determined to be defective by Analytical Industries Inc. is limited to replacing the defective sensor.
