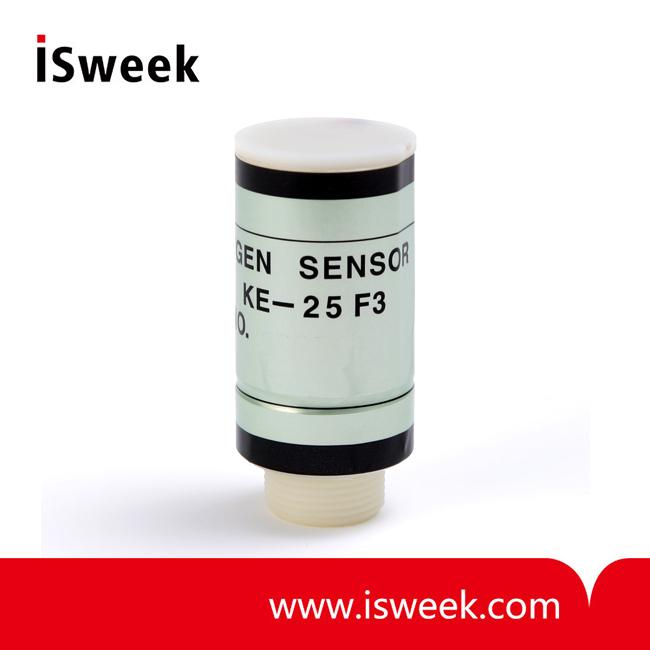

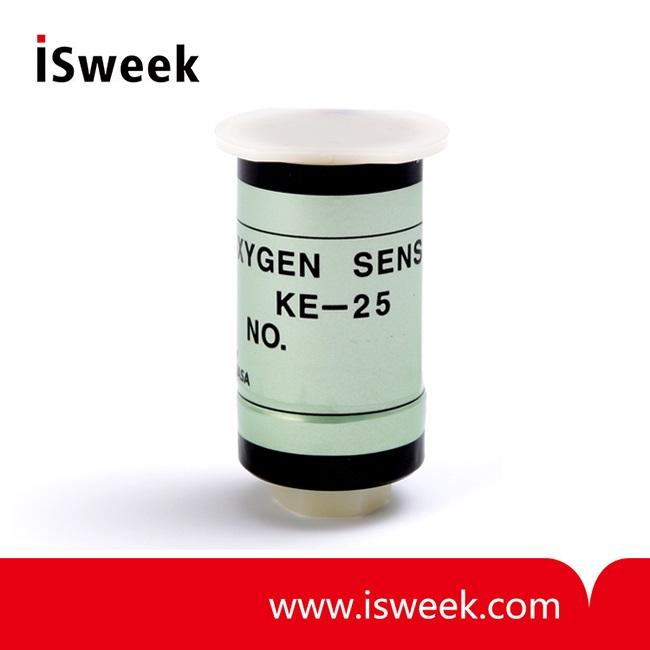

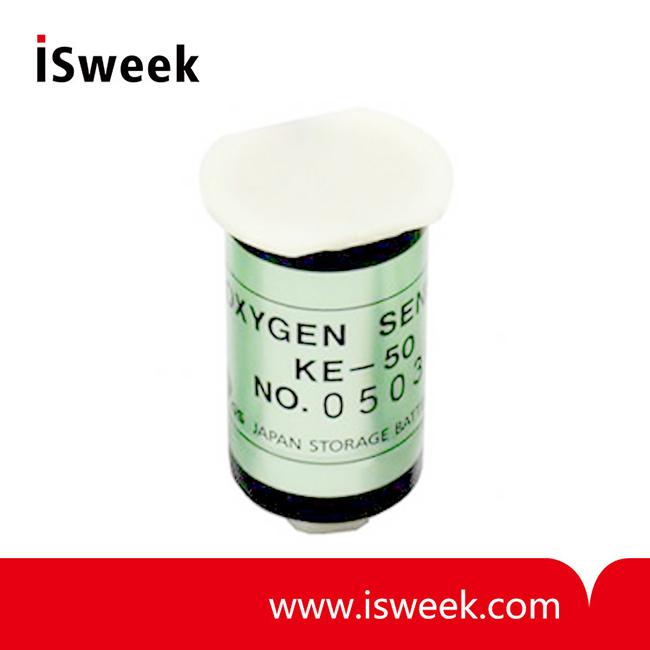

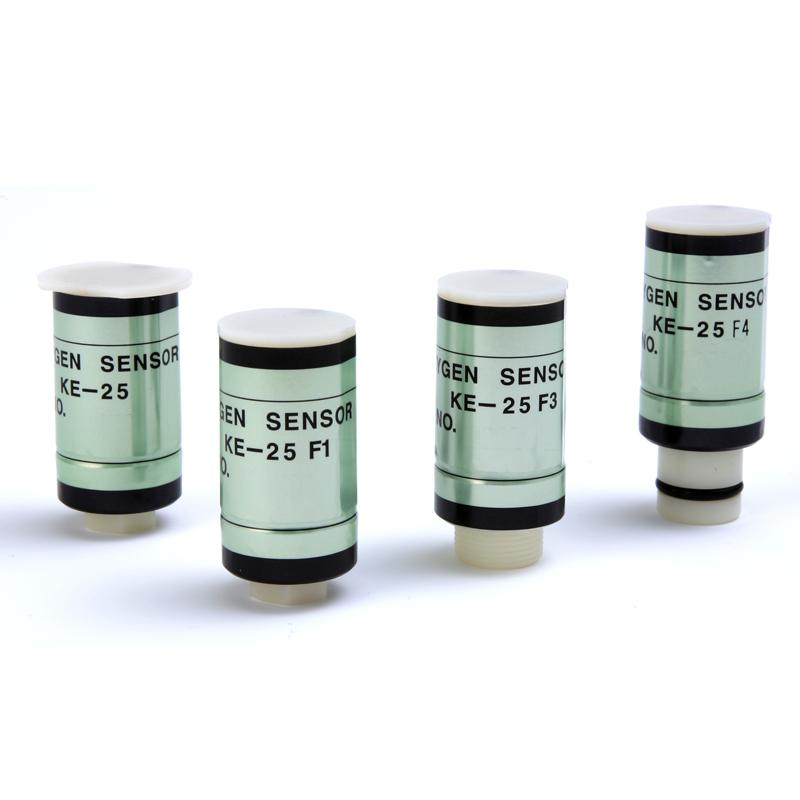

Long life electrochemical oxygen sensor （O2 sensor ）
-
Price
Price on request ≥1piece
-
Model Number
KE-25 KE-25F3 KE-50 -
Data Sheet
-
Package
Original packaging -
Specs
KE-25 KE-25F3 KE-50 -
Quantity
- +Send Inquiry
Product Description
Features:
* Long life - 2.5~10 years in ambient air
* Virtually no influence from CO2, CO, H2S, NOx, H2
* Low cost
* Operates in normal ambient temperatures
* Stable output signal
* No external power supply required for sensor operation
* No warmup time is required
Applications:
* Medical - Anesthetic instruments, respirators, oxygen-enrichers
* Biotechnology - Oxygen incubators
* Food industry - Refrigeration, greenhouses
* Safety - Air conditioners, oxygen detectors, fire detectors
Specifications
| Target gases | Oxygen |
|---|---|
| Typical detection range | 0-100% O2 |
| Sensing principle | Galvanic cell |
| Operating conditions |
5˚C ~ 40˚C 10 ~ 90R.H. (no condensation) |
| Dimensions | φ28×47.3mm |
| Weight | Approx. 24ｇ |
Gas Oxygen Sensor KE Series (KE-12, KE-25, and KE-50) are unique galvanic cell type oxygen sensors developed in Japan in 1985. Their most notable features are long life expectency, excellent chemical durability, and no influence by CO2. KE Series oxygen sensors are ideal to meet the ever-increasing demand for oxygen monitoring in various fields such as combustion gas monitoring, the biochemical field, medical applications, domestic combustion appliances, etc.
Sensitivity characteristics (typical values under std. test conditions)
Response time (typical)
