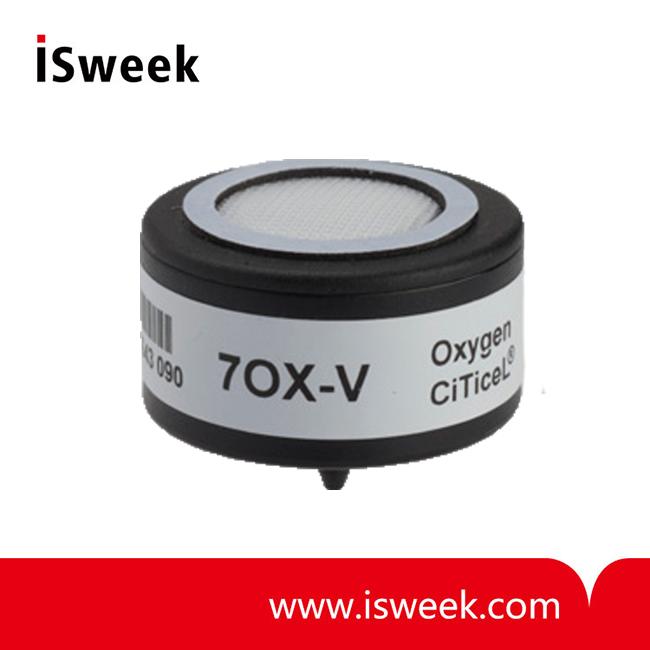

Oxygen（O2）Gas Sensor
-
Price
Price on request ≥1piece
-
Model Number
7OXV -
Data Sheet
-
Package
Original packaging -
Specs
7OXV -
Quantity
- +Send Inquiry
Find Similar Products
-
Oxygen Gas Sensor (O2 Sensor)
Model Number：O2-M2
MOQ：1
-
Long life electrochemical oxygen sensor （O2 sensor ）
Model Number：KE-25 KE-25F3 KE-50
MOQ：1
-
General Purpose Trace (PPM) Oxygen Sensor
Model Number：TO2-1x
MOQ：1
-
General Purpose Trace (PPM) Oxygen Sensor
Model Number：TO2-133
MOQ：1
-
General Purpose Trace (PPM) Oxygen Sensor
Model Number：TO2-1L
MOQ：1
-
Trace PPM Oxygen Sensor (O2 sensor)
Model Number：TO2-233
MOQ：1
Product Description
7OXV Oxygen Gas Sensor Key Features and Benefits：
• Robust, industry standard 7-Series packaging
• Compact size
7OXV Oxygen Gas Sensor Technical Specifications：
|
MEASUREMENT |
|
|
Technology |
Electrochemical |
|
Measurement Range |
0-25% vol. O2 |
|
Maximum Overload |
30% vol. O2 |
|
Output Signal* |
0.195 - 0.25 mA in Air |
|
Response Time (T90)* |
<15 Seconds |
|
Offset (3 minutes N2)* |
<0.5% vol. O2 |
|
Linearity |
Can be considered linear in many cases. See Operating Principles (OP-02) for further details. |
|
ELECTRICAL |
|
|
Recommended Load Resistor |
100 Ω |
|
MECHANICAL |
|
|
Weight |
<34 g |
|
Casing Material |
ABS |
|
ENVIRONMENTAL |
|
|
Operating Temperature Range |
-20°C to +50°C |
|
Recommended Storage Temp |
0°C to 20°C |
|
Temperature Coefficient |
0.2% signal / °C |
|
Absolute Pressure Range |
Atmospheric ± 10% |
|
Differential Pressure Range |
40 mBar maximum |
|
Pressure Coefficient |
<0.02% signal / mBar |
|
Relative Humidity Range |
Intermittent：0 to 99%RH non-condensing |
|
Continuous：15 to 99%RH non-condensing |
|
|
LIFETIME |
|
|
Long Term Output Drift* |
<5% signal / year |
|
Expected Operating Life |
2 years in air |
|
Storage Life |
6 months in original packaging |
