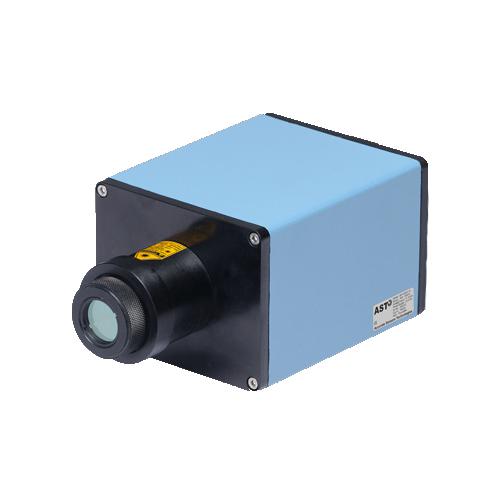

• Highly Accurate On-line Two Color Infrared Focusable Non-contact Pyrometers
Mouse over image to zoom

Highly Accurate On-line Two Color Infrared Focusable Non-contact Pyrometers

ISweek online 2h ago

ISweek_com

Send Inquiry Chat Now

  • Price

    Price on request   ≥1piece

  • Model Number

    A450C+

  • Data Sheet

  • Package

    Original packaging

  • Specs

    A450C+

  • Quantity

    - +

  • Send Inquiry

Find Similar Products

Product Description

Highly Accurate On-line Two Color Infrared Focusable Non-contact Pyrometers

800°C to 3000°C


Description:
A450C+ is a highly accurate digital two color IR Focusable pyrometer to provide high performance and low maintenance of non contact temperature measurement in demanding industrial and R&D environments. The Pyrometer measures the temperature of an object by calculating the ratio of the energies at two different wavelength bands. The ratio technique eliminates and reduces errors in temperature measurement caused by changes in Emissivity, Surface finish and energy absorbing materials such as Water vapour etc.

The IR pyrometer parameters can be selected via the key pads on the back panel. The settings are displayed on the large colour video LCD (55.5 (W) x 47.9 (H) x
3.17 ((D). In the measuring mode real time temperature and emissivity is displayed. In Pyrometers with video module real time colour video, measuring temperature and emissivity is displayed on the LCD screen. A450C+ have focusable optics for optimal match of the instrument for various applications. The pyrometers are equipped with user selectable RS-232 and RS-485; analog outputs 0/4….20, 0…10V.

Features:
• Wide temperature ranges from 800°C to 3000°C
• Focusable Optics
• Fast Response Time
• Spectral range 0.7 μm....1.15 μm
• Integrated LCD Display & Parameterizing Keys
• Two Color model
• Laser targeting, Through The lens view finder sighting options
• Analog output options 0...20mA, 4...20mA and 0...10V
• RS-232/RS-485 Serial interface
• User friendly PC software for communication

Standard Scope of Supply:
• Pyrometer with Focusable optics, LCD Display & Parameterizing Keys
• Laser pilot light(PL)/Through the lens(TL) sighting(user can select while ordering)
• Analog output 4...20mA, 0..20mA, 0..10V
• Digital Interface RS-232 / RS-485(user selectable)
• 5 mtr long connection cable with connector
• 1.5 mtr. Communication Cable
• Calibration certificate, Software & Operation manual

Optional:
• Mechanical & Electrical Accessories
• Extra Cable Lengths

Applications:
• Induction Heating            • Melting
• Annealing                        • Rolling Mills
• Welding                          • Rolling Kilns
• Forging                           • Crystal growing
• Sintering

Technical specifications:

Model  A450C+
Temperature Range
(Analog sub-range adjustable) 		800°C - 2500°C
1000°C - 3000°C
Spectral Range 0.7….1.15 μm
Photodetector Type Si/Si
Distance to Spot Size Ratio 200:1 (800°C…..2500°C)
400:1 (1000°C….3000°C)
Emissivity (ε) 0.1….1.0 adjustable (Single color mode)
Emissivity Slope (ε1 / ε2) 0.75…1.25 slope adjustable (Two color mode)
Response Time 20 msec adjustable upto 10 sec
Accuracy ± 0.5% of the measured value + 1°C
Repeatability 0.1% of reading in °C + 1°C
Sighting Options Laser Pilot Light(PL), Through The Lens (TL) & Video Module
Analog Output 0-20mA, 4-20mA, 0-10V (User selectable)
Digital Output RS-232/RS-485 (User selectable)
Operating Temp. Range 0°C…….70°C
Storage Temp. Range -20°C…70°C

Adjustable Parameters

and Features via Software

Emissivity, Response Time, Clear Time(Peak Picker),
Analog Output, Analog Scale (Sub Range) , Unit Of
Temperature(°C/°F), Communication mode
(Comm.mode), Record feature etc

Adjustable Parameters

and Features via Keypad

Emissivity, Emissivity Slope, Response Time, Clear Time(Peak Picker),

Analog Output, Analog Scale(Sub range),Sensor type

(Switches bw 2-color or single color), Switch off level, Unit Of

Temperature(°C/°F), Communication mode(Comm. mode) etc.
Power Supply 24V DC
Power Consumption Max 5.0 watt
Laser Power <1 m watt
Protection Class IP65
Housing Stainless Steel
Isolation Power supply, Digital output and Analog output are
galvanically islolated against each other
Operating Humidity 10-95%, non condensing conditions
Weight & Dimensions 600g Dia= Ø 49.5 mm; Length=118mm


Software “Infrasoft”:
AST “Infrasoft “ software is under standard scope of supply.It offers possibilities of connecting three pyrometers simultaneously for parameter setting, view real time graph, offline graph and to evaluate measuring data. Communication between the pyrometer and the software is implemented via a cable connected between the pyrometer
and the PC serial port. It comes with record feature, spot size calculator and parameter settings features.
Some of the parameters adjustable via software are
  • Emissivity, Response Time,
  • Clear Time(Peak Picker),
  •  Analog Output,
  • Sub Range,
  • Unit Of Temperature(°C/°F) ,
  • Communication mode(Comm.mode).
