Highly Accurate On-Line Infrared Pyrometer

Highly Accurate On-Line Infrared Non-Contact Pyrometer
250°C to 3000°C

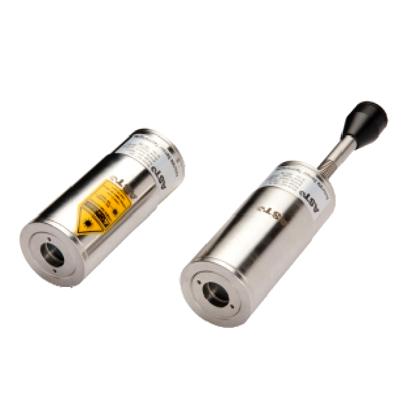

A250 PL/TL and A450 PL/TL Infrared Pyrometer Description:
A250 PL/TL and A450 PL/TL are specially designed IR Pyrometers of A Series family for non contact temperature measurement in demanding industrial environments. The Pyrometers are highly accurate and compact by nature with stainless steel housing to provide high operational safety for harsh industrial environments. The Pyrometers are designed for high temperature applications between 250°C….3000°C.

The parameters like Emissivity, Analog Output, Sub Range, Response Time and Peak Picker etc can be preset ex-works or adjustable via Software Infrasoft.The Pyrometers are provided with Digital USB 2.0 output with cable and RS-232/RS- 485 for communication between the Pyrometer and PC software. For USB 2.0 connector, no external power supply is required. (24V DC is required for operation of Analog Output, Laser, RS-232/RS-485 Serial interface)

A250 PL/TL and A450 PL/TL Infrared Pyrometer Features:
• Wide temperature ranges from 250°C to 3000°C.
• Spectral Range 1.0 μm....1.6 μm
• Fast response time within milliseconds
• Analog output options available like 0...20mA,4...20mA and 0...10V
• Laser or Through the Lens view finder sighting options
• USB 2.0 Digital output and RS-232/RS-485 Serial interface
• User friendly PC software for communication
• Small Spot Sizes
• Accessories for mounting and cooling options

A250 PL/TL and A450 PL/TL Infrared Pyrometer Standard Scope of Supply:
• Pyrometer with Laser pilot light(PL)/Through the lens(TL) sighting(user can select while ordering)
• Analog output 4...20mA, 0..20mA, 0..10V
• USB 2.0 Digital output, USB Cable
• Digital Interface RS-232 / RS-485(user selectable)
• 5 mtr long connection cable with connector
• 1.5 mtr. Communication Cable
• Calibration certificate, Software & Operation manual

A250 PL/TL and A450 PL/TL Infrared Pyrometer Optional:
• Mechanical & Electrical Accessories
• Extra Cable Lengths
• Single Analog Input 4...20mA for emissivity adjustment or background ambient compensation (to be specified while ordering)

A250 PL/TL and A450 PL/TL Infrared Pyrometer Applications:
• Induction Heating                        • Sintering
• Casting                                        • Melting
• Annealing                                    • Rolling mills
• Welding                                       • Hardening
• Forging

A250 PL/TL and A450 PL/TL Infrared Pyrometer Technical specifications:

Model	A250 PL/TL	A450 PL/TL
Temperature Range  (Analog sub-range adjustable)	250°C….1000°C 300°C….1300°C 350°C….1800°C 500°C….3000°C	600°C…1900°C 750°C….2500°C
Spectral Range	1.6 μm	1.0 μm
Photodetector Type	InGaAs	Si
Distance to Spot Size Ratio	50:1 (250°C….1000°C) 100:1 (300°C….1300°C) 200:1 (350°C….1800°C) 200:1 (500°C….3000°C)	200:1 (600°C….1900°C) 200:1 (750°C….2500°C)
Emissivity (ε)	0.1-1.0 adjustable
Response Time	2 msec adjustable upto 10 sec
Accuracy	± 0.3% of the measured value + 1°C
Repeatability	0.1% of reading in °C + 1°C
Sighting Option	Laser Pilot Light (PL) / Through The Lens (TL)
Analog Output	0-20mA, 4-20mA, 0-10V (User selectable)
Digital Output	USB 2.0 RS-232/RS-485 (User selectable) *At a time only one digital output possible
Operating Temp. Range	0°C…….70°C 0°C…..200°C (With water cooling jacket)
Storage Temp. Range	-20°C…70°C
Adjustable Parameters and Features via Software	Emissivity, Response Time, Clear Time(Peak Picker), Analog Output, Analog Scale (Sub Range),Unit Of Temperature(°C/°F), Communication mode(Comm.mode) , Record feature etc.
Power Supply	24V DC
Power Consumption	Max 2.5 W
Laser Power	<1 m watt
Protection Class	IP65
Housing	Stainless Steel
Isolation	Power supply, Digital output and Analog output are galvanically isolated against each other * Not applicable for USB 2.0 digital outpu
Operating Humidity	10-95%, Non-Condensing Conditions
Weight & Dimensions	600g    Dia= Ø 49.5 mm; Length=118mm

Software “Infrasoft”:
AST “Infrasoft “ software is under standard scope of supply.It offers possibilities of connecting three pyrometers simultaneously for parameter setting, view real time graph, offline graph and to evaluate measuring data. Communication between the pyrometer and the software is implemented via a cable connected between the pyrometer and the PC serial port. It comes with record feature, spot size calculator and parameter settings features.
Some of the parameters adjustable via software are
  • Emissivity, Response Time,
  • Clear Time(Peak Picker),
  • Analog Output,
  • Sub Range,
  • Unit Of Temperature(°C/°F) ,
  • Communication mode(Comm.mode).
