Product Description

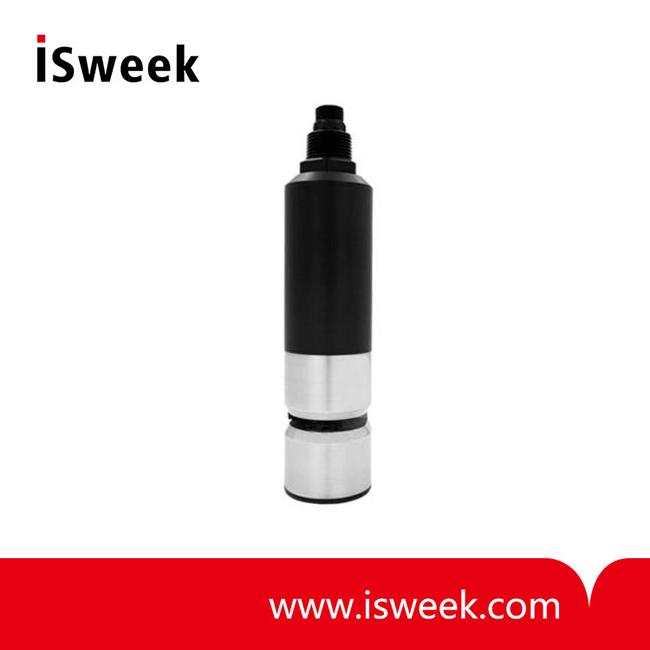

Y551 UV254 COD Prob:

    Yosemite Y551 UV254 probe features highly reliable UVC LED for light absorption measurement. This proven technology provides reliable and accurate analysis of organic pollutants for  water quality monitoring at low cost and low maintenance. With rugged design, and integrated turbidity compensation, it is an excellent solution for continuous monitoring of source water, surface water, municipal and industrial wastewaters.



Y551 Features:

• Modbus RS-485 output for easy system integration

• Programmable auto-cleaning wiper

• No chemicals, direct UV254 spectral absorption measurement

• Proven UVC LED technology, long lifetime, stable and instant measurement

• Measurement of SAC、COD、TOC, and BOD

• Advanced turbidity compensation algorithm



Y551 Technical Parameters：

Item

parameter

Interface

Support RS-485， MODBUS protocols

Range

COD 0.75 to 370mg/L equiv. KHP TOC 0.3 to 150mg/L equiv. KHP

Resolution

0.01mg/L COD

Temperature Accuracy

+5 ~ 45℃

Housing IP Rating

IP68

Maximum pressure

1 bar

User Calibration

one or two points

Power Requirements

DC 12V +/-5%，current<50mA(without wiper)

Sensor OD

50 mm

Sensor Length

214 mm

Cable Length

10m (default)

Body Materials

POM and 316L
