Product Description

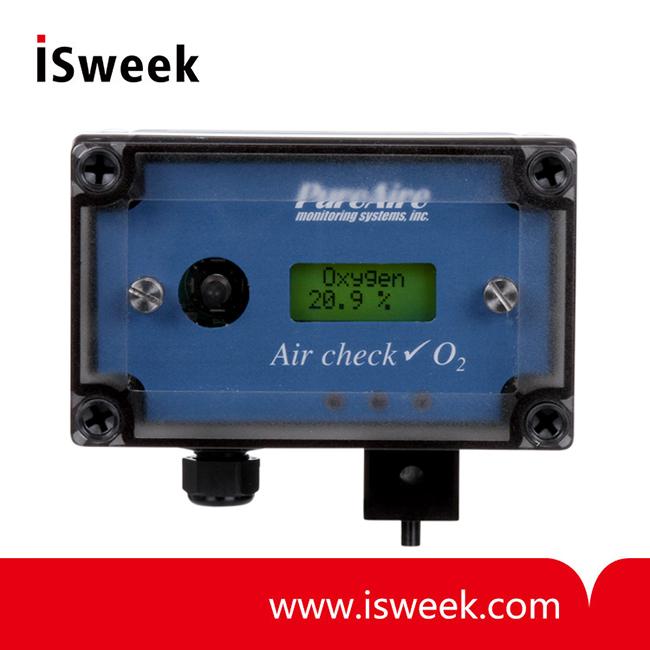

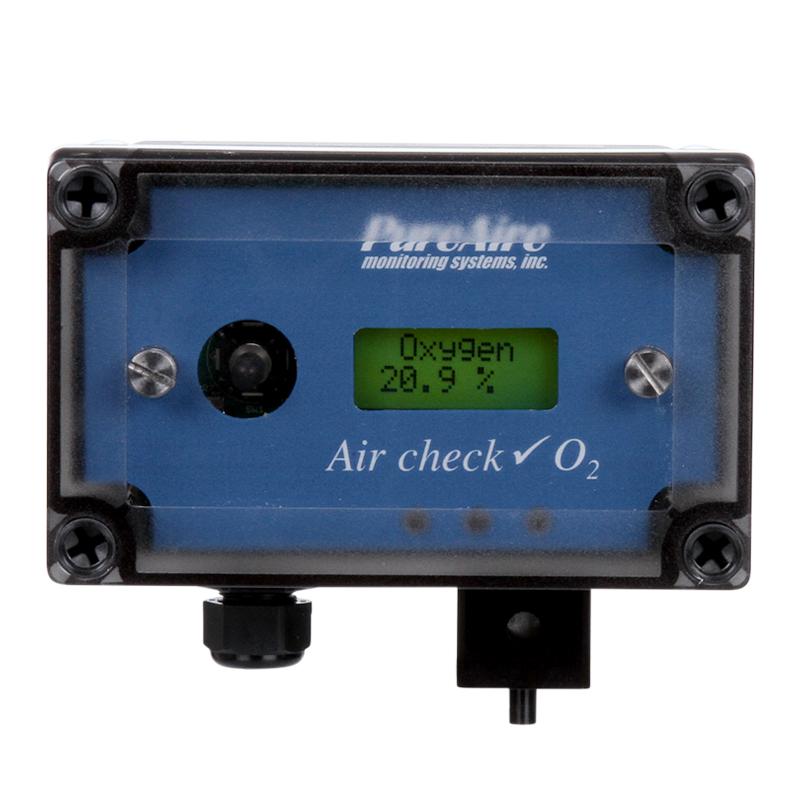

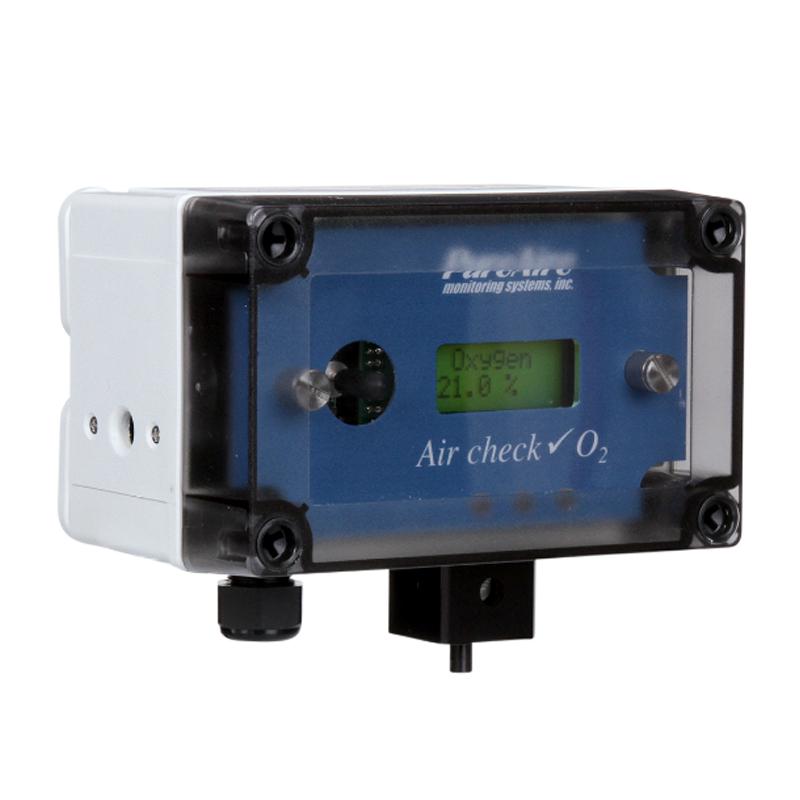

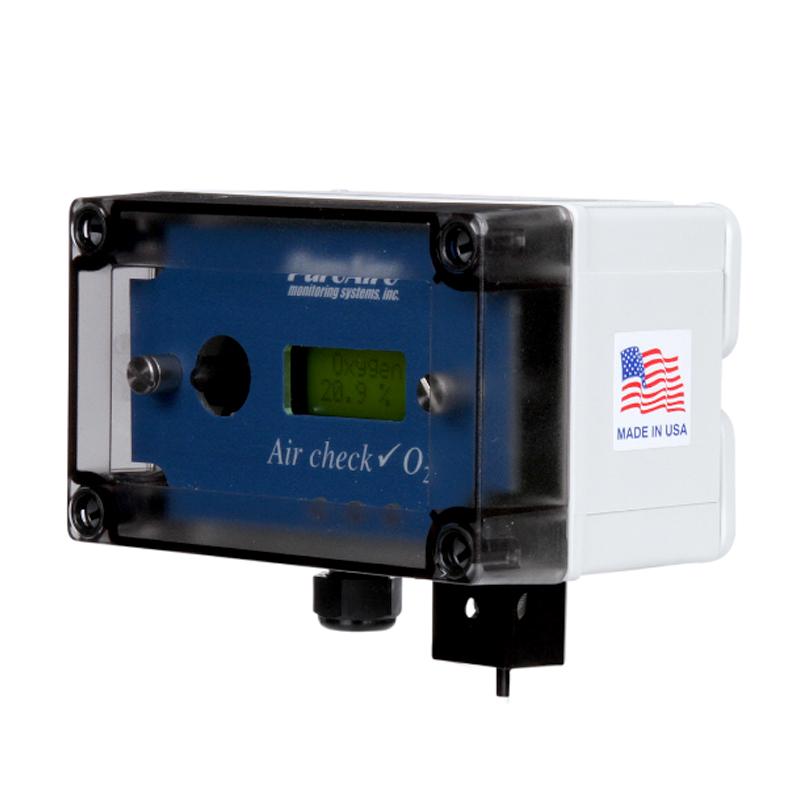

Oxygen Deficiency Monitor with 10+ Year Sensor
Item #: TX-1100DRA (99016)
Air check O2 Deficiency Monitor Product Summary
The Air Check oxygen deficiency monitor is perfect for facilities using nitrogen, helium, and argon. The monitor is also suited for use in confined spaces, cryogenic facilities, and freezers. The monitor remains accurate at temperatures as low as -40C. Our long lasting zirconium oxide sensor lasts for 10+ years.
Air check O2 Deficiency Monitor Features
• 10 + Years no calibration sensor
• Two-alarm relays for 19.5% and 18.0%
• No maintenance required
• Ultra loud built-in audible alarm 90 db
• 3 Year warranty
• Digital display, 4-20mA analog output
• Operates in freezers at - 40 ºC
• No drift due to thunderstorms or barometric pressure changes
• Wall mounting brackets
• Optional plug in wall power supply
• Ce approved EMC EN 61326-1:2006
The Air check O2 Deficiency Monitor is a compact gas monitoring system that's ideal for the continuous monitoring of inert gas storage areas, freezers, confined spaces, and other locations where low oxygen levels may pose a hazard to personnel. Unlike electrochemical sensor cells the Air check O2 zirconium cell provides stable oxygen readings even in areas where temperature, barometric pressure and humidity levels are changing. The PureAire Air check O2 Deficiency Monitor is suitable for either indoor or outdoor use.
The heart of the monitoring system is a long lasting zirconium sensor, which responds to low oxygen conditions within seconds and provides accurate measurements over a wide temperature and humidity range. The zirconium O2 sensor cell will operate continuously for 10 or more years and requires an absolute minimum of maintenance. There are no zero or span calibration pots to adjust and when compared to disposable type sensors, our long life zirconium O2 sensor can save up to $475 annually and will pay for itself in just over 3 years!
Ideal for continuously monitoring oxygen levels in confined spaces or areas where inert gases are used, the Air check O2 Deficiency Monitor does not drift or loose sensitivity when the weather or temperature changes. The electronics are housed in a polycarbonate housing or optional EX for hazardous areas.
Air check O2 Deficiency Monitor Specifications
Item #: TX-1100DRA (99016)
Air check O2 Deficiency Monitor Product Summary
The Air Check oxygen deficiency monitor is perfect for facilities using nitrogen, helium, and argon. The monitor is also suited for use in confined spaces, cryogenic facilities, and freezers. The monitor remains accurate at temperatures as low as -40C. Our long lasting zirconium oxide sensor lasts for 10+ years.
Air check O2 Deficiency Monitor Features
• 10 + Years no calibration sensor
• Two-alarm relays for 19.5% and 18.0%
• No maintenance required
• Ultra loud built-in audible alarm 90 db
• 3 Year warranty
• Digital display, 4-20mA analog output
• Operates in freezers at - 40 ºC
• No drift due to thunderstorms or barometric pressure changes
• Wall mounting brackets
• Optional plug in wall power supply
• Ce approved EMC EN 61326-1:2006
The Air check O2 Deficiency Monitor is a compact gas monitoring system that's ideal for the continuous monitoring of inert gas storage areas, freezers, confined spaces, and other locations where low oxygen levels may pose a hazard to personnel. Unlike electrochemical sensor cells the Air check O2 zirconium cell provides stable oxygen readings even in areas where temperature, barometric pressure and humidity levels are changing. The PureAire Air check O2 Deficiency Monitor is suitable for either indoor or outdoor use.
The heart of the monitoring system is a long lasting zirconium sensor, which responds to low oxygen conditions within seconds and provides accurate measurements over a wide temperature and humidity range. The zirconium O2 sensor cell will operate continuously for 10 or more years and requires an absolute minimum of maintenance. There are no zero or span calibration pots to adjust and when compared to disposable type sensors, our long life zirconium O2 sensor can save up to $475 annually and will pay for itself in just over 3 years!
Ideal for continuously monitoring oxygen levels in confined spaces or areas where inert gases are used, the Air check O2 Deficiency Monitor does not drift or loose sensitivity when the weather or temperature changes. The electronics are housed in a polycarbonate housing or optional EX for hazardous areas.
Air check O2 Deficiency Monitor Specifications
|
Sampling Method & Range |
Diffusion, 0-25% O2 |
|
Accuracy |
± 1% of full scale |
|
Operating Temperature |
-40 to +55°C |
|
Display |
¾" backlit LCD digital display |
|
Sensor Type |
Long life zirconium oxide sensor |
|
Sensor Life |
10+ years under normal conditions |
|
Signal Outputs |
Standard: 4-20 mA analog output Optional: Dual User Selectable Relays (2amp 30VDC / 240VAC) Audible alarm Digital RS-232 |
|
Power Requirements |
24VDC 100mA without relays; 500mA with relays |
|
Dimensions |
5.12 (W) x 4.5 (H) x 3.25 (D) inches; (130.1 x 114.3 x 82.1 mm) |
|
Weight |
1.6 lbs. (.8 kg) |
|
Enclosure |
Polycarbonate |
|
Approvals |
Ce approval & factory calibrated against a NIST traceable reference standard |
|
Required calibration |
None (no zero or span pots supplied) |
