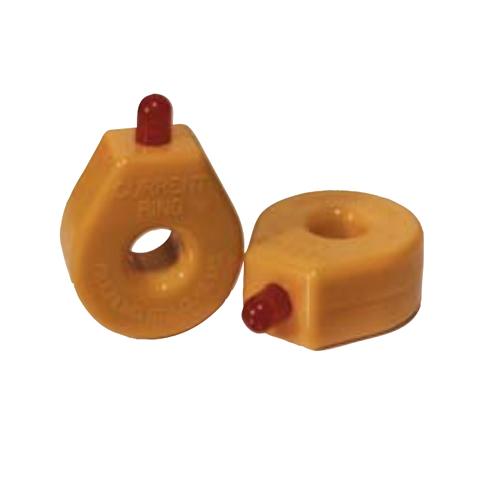

Wire-mounted Electrical Current Indicator
-
Price
Price on request ≥1piece
-
Model Number
CR45 Series -
Data Sheet
-
Package
Original packaging -
Specs
CR45 Series -
Quantity
- +Send Inquiry
Find Similar Products
-
AC Current Transformer to DC Current (4-20 mA - Loop Powered)
Model Number：T201
MOQ：1
-
DC Current Trasducer to DC Current (4..20 mA - Loop Powered)
Model Number：T201DC
MOQ：1
-
Loop Powered Transmitter for Pt100 and Ni100 Probes
Model Number：T120
MOQ：1
-
Isolated Loop Powered Universal Temperature Transmitter
Model Number：T121
MOQ：1
-
Passive Current Transducers 100 ADC (4-20 mA - Current Loop)
Model Number：T201DC-100
MOQ：1
-
AC/DC Contactless TRMS Direct and Alternate Current Transformers
Model Number：T201DCH
MOQ：1
Product Description
The CR45 series of Wire-Mounted Electrical Current Indicators provides an effective method of monitoring electrical current. The indicator is attached directly to a current-carrying wire. When the current exceeds the turn-on point, the LED will illuminate to indicate the presence of current.
CR45 Series Wire-mounted Electrical Current Indicator Features
• Self powered
• Red or green indicator
• Easy to Install
• Supplied with plastic tie
• Bright yellow case for easy identification
• Panel mounting bracket available
CR45 Series Wire-mounted Electrical Current Indicator Specifications
• Turn-on Point (1 Pass): 2.0 for Red
• Turn-on Point (1 Pass): 2.5 for Green
• Max. Continuous Current: 100 Amps
• Frequency: 50 to 60 Hz
CR45 Series Wire-mounted Electrical Current Indicator Applications
• Monitor status of heater elements
• Observe remote loads
• Indicate phase loss
• Monitor motor operation
CR45 Series Wire-mounted Electrical Current Indicator PART NUMBERS
CR45 Series Wire-mounted Electrical Current Indicator Features
• Self powered
• Red or green indicator
• Easy to Install
• Supplied with plastic tie
• Bright yellow case for easy identification
• Panel mounting bracket available
CR45 Series Wire-mounted Electrical Current Indicator Specifications
• Turn-on Point (1 Pass): 2.0 for Red
• Turn-on Point (1 Pass): 2.5 for Green
• Max. Continuous Current: 100 Amps
• Frequency: 50 to 60 Hz
CR45 Series Wire-mounted Electrical Current Indicator Applications
• Monitor status of heater elements
• Observe remote loads
• Indicate phase loss
• Monitor motor operation
CR45 Series Wire-mounted Electrical Current Indicator PART NUMBERS
|
Part Number |
LED Color |
Turn On Point (1 pass) |
|
CR45-R |
Red |
2.0 AAC |
|
CR45-G |
Green |
2.5 AAC |
|
CR45-B |
Blue |
2.0 AAC |
|
CR45-W |
White |
2.0 AAC |
|
CR45-Y |
Yellow |
2.0 AAC |
|
CR45-A |
Amber |
2.0 AAC |
