DC Current Trasducer to DC Current (4..20 mA - Loop Powered)

Product Information

Accuracy Class:
Max Error:

Temperature Coefficient:
EMI Error:
Response Time:

Protection Degree:
Operating Temperature:
Humidity:
Weight:
Dimensions:
Enclosure:
Configuration:
Mounting:
Standards:

5 to 28 V
0.2 %
0.2% o.m + 0.1% o.f.s.
< 150 ppm/K
< 50 μA
100 ms (without filter)
2.5 s (with filter)
IP 20
-20 to +65 °C
10-90% (non condensing)
47 g
38 x 40 x 20 mm
PBT, Black
DIP Switches (Range, Filter)
DIN Rail, Guide
CE, EN 61000-6-4, EN 64000-6-2
EN 61010-1, EN 60742

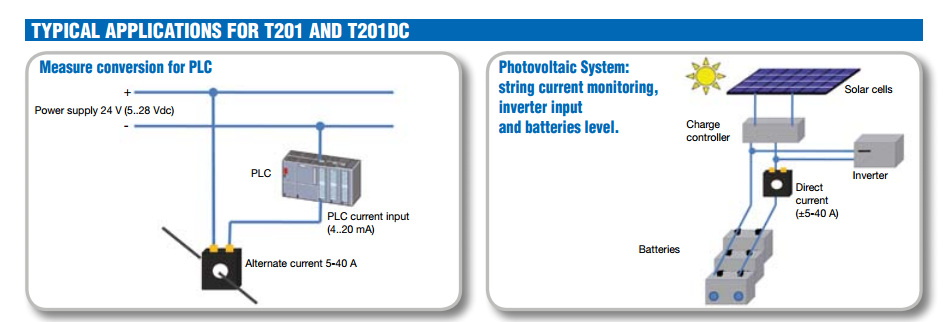

Input

Connection:
Hole Diameter:
Range:

Maximum Rating:

AC Overlying (f > 35Hz):


Isolation:

Passing - Through Hole
12.5 mm, 1/2"
Monopolar: 0-5, 0-10, 0-20, 0-40 A
Bipolar: -5 to +5, -10 to +10, -5 to +20, -10 to +40 A
> 1.000 A
± 300 A (correct reading range)
-15 to +50 A (allowable peak value)
-10 to +32 A (full-wawe rectified)
-5 to +16 A (half-wawe rectified)
When a sheathed wire is used, the insulation voltage is set by sheath properties. It's started 1 kVDC.

Output/Power Supply

Type:
Terminals:
Min Voltage
Max Voltage


Other Protections:


Max Power Dissipation:

Passive Current Loop 4-20 mA
Screw terminal pitch 5.08 mm for max 2.5 mm² cables
6 V
30 V (directly wired)
100 V (with added resistor)
120 V (pulsed, directly wired)
Polarity reversal
Loop current limiting on hardware fault
Over temperature
650 mW continuous
2.5 W pulsed (10 s)
1500 W.ms on surged (500 V, 40)
