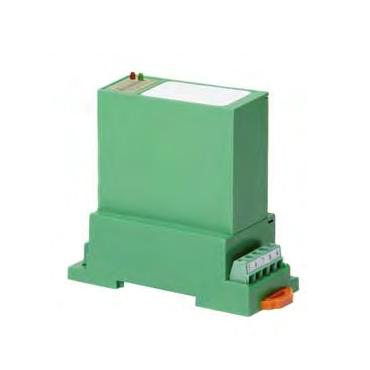

Two Element, 3-Wire RS485 AC Voltage Digital Transducer
-
Price
Price on request ≥1piece
-
Model Number
CRD4550 -
Data Sheet
-
Package
Original packaging -
Specs
CRD4550 -
Quantity
- +Send Inquiry
Find Similar Products
-
AC Current Transformer to DC Current (4-20 mA - Loop Powered)
Model Number：T201
MOQ：1
-
DC Current Trasducer to DC Current (4..20 mA - Loop Powered)
Model Number：T201DC
MOQ：1
-
Loop Powered Transmitter for Pt100 and Ni100 Probes
Model Number：T120
MOQ：1
-
Isolated Loop Powered Universal Temperature Transmitter
Model Number：T121
MOQ：1
-
Passive Current Transducers 100 ADC (4-20 mA - Current Loop)
Model Number：T201DC-100
MOQ：1
-
AC/DC Contactless TRMS Direct and Alternate Current Transformers
Model Number：T201DCH
MOQ：1
Product Description
The CRD4500 Series Data Stream Digital Transducers are designed for applications where AC current waveforms are not purely sinusoidal. The digital technology is used to measure voltage, current, power frequency and energy in single and three phase designs. The data is streamed over an RS485 IEEE bus which enables multiple transducers to communicate thru a single master connection. These advanced sensors are ideal for entire plant or zone monitoring. Also, the communication alagorithm can be pre-ordered with ASCII based control or modified MODBUS based control.
CRD4550 AC Voltage Digital Transducer Features
• Heart Beat and Communication Indicators
• Pre-Calibrated with Non-Volatile Memory
• RS485 Output
• Optional MODBUS Output
• Voltage Input up to 300 VAC
• Three Phase 3 Wire
• DIN Rail or Surface Mount
CRD4550 AC Voltage Digital Transducer Specifications
• Basic Accuracy: 0.5%
• Frequency Range 20 Hz to 5 KHz
• Continuous Overvoltage: 2 times Full Scale
• Isolation Voltage: 2500 VDC
• Supply Voltage: 24VDC +/- 5%
• Supply Power: Less than 250 mWatts
• Output ESD Protection: +/- 15KV
• Output Resolution: 16 BIT
• Operating Temperature: 0 to 50 ℃
CRD4550 AC Voltage Digital Transducer Applications
• Sub-Metering Energy Measurement
• Motor Loads
• Remote Monitoring
• Automatic Control Systems
• Load Shedding
CRD4550 AC Voltage Digital Transducer Sensing
• True RMS Voltage, Each Phase
