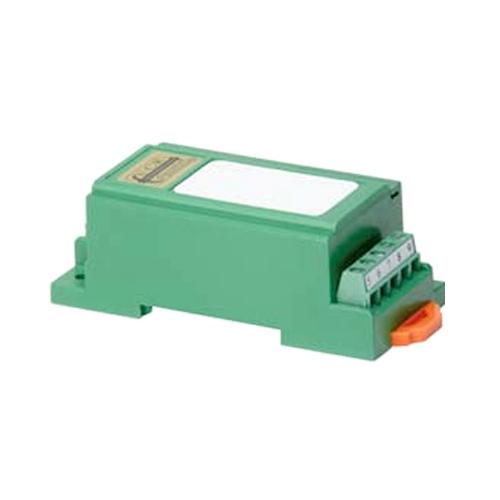

True RMS AC Voltage Transducer - Single Phase

Find Similar Products

•

  AC Current Transformer to DC Current (4-20 mA - Loop Powered)

  Model Number：T201

  MOQ：1

•

  DC Current Trasducer to DC Current (4..20 mA - Loop Powered)

  Model Number：T201DC

  MOQ：1

•

  Loop Powered Transmitter for Pt100 and Ni100 Probes

  Model Number：T120

  MOQ：1

•

  Isolated Loop Powered Universal Temperature Transmitter

  Model Number：T121

  MOQ：1

•

  Passive Current Transducers 100 ADC (4-20 mA - Current Loop)

  Model Number：T201DC-100

  MOQ：1

•

  AC/DC Contactless TRMS Direct and Alternate Current Transformers

  Model Number：T201DCH

  MOQ：1

Product Description

CR4511 True RMS Voltage Transducers and Transmitters are designed for applications where AC voltage waveforms are not purely sinusoidal. More precise and accurate than other devices, these units are ideal in chopped wave and phase fired control systems.

CR4511 True RMS AC Voltage Transducer Features
• Connection diagram printed on case
• DIN rail mount or panel mount
• Highest precision available
• 24 Vdc powered
• Outputs isolated from inputs
• 0-10 Vdc output

CR4511 True RMS AC Voltage Transducer Specifications
• Thermal Drift: 500 PPM/°C
• Output Load: 2 K or greater
• Supply Voltage: 24 VDC
• Insulation Voltage: 2500 VDC
• Response Time: 250 ms
• Operating Temperature: 0°C to +60°C
• Calibration: True RMS sensing
• Basic Accuracy: 0.5%
• MTBF: Greater than 100 K hours
• Frequency Range: 20 Hz-5 KHz

CR4511 True RMS AC Voltage Transducer Applications
• Chopped waveform drivers
• Phase fired controlled devices
• Quickly varying voltage supplies
• Harmonic voltages

CR4511 True RMS AC Voltage Transducer PART NUMBERS
