Product Description

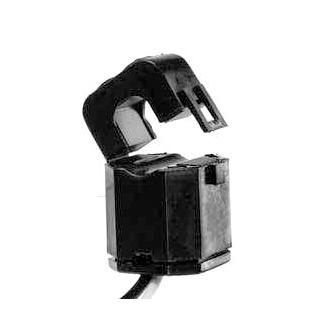

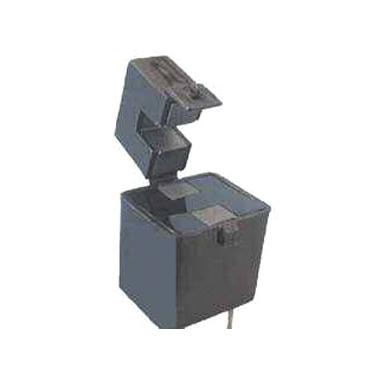

The CR3100 Series Split Core Current Transformer is designed to provide a low cost method to monitoring electrical current. A unique hinge and locking snap allows attachment without interrupting the current-carrying wire. High secondary turn will develop signals up to 10.0 VAC across a burden resistor.
CR3100 Series Split-core Current Transformer Features
• Small size
• Low cost
• High secondary turns
• Secure locking hinge
CR3100 Series Split-core Current Transformer Specifications
• Maximum Continuous Primary Current: 75 AAC
• Secondary turns: 3000
• Wire leads: AWG #22
• Frequency: 50/60 Hz
• DC Resistance: 460 Ohms @ 20°C
CR3100 Series Split-core Current Transformer Applications
• Portable instruments
• Sub-metering
• Monitor motor loads
CR3100 Series Split-core Current Transformer PART NUMBERS
CR3100 Series Split-core Current Transformer Features
• Small size
• Low cost
• High secondary turns
• Secure locking hinge
CR3100 Series Split-core Current Transformer Specifications
• Maximum Continuous Primary Current: 75 AAC
• Secondary turns: 3000
• Wire leads: AWG #22
• Frequency: 50/60 Hz
• DC Resistance: 460 Ohms @ 20°C
CR3100 Series Split-core Current Transformer Applications
• Portable instruments
• Sub-metering
• Monitor motor loads
CR3100 Series Split-core Current Transformer PART NUMBERS
|
Part Number |
Imax |
Vmax RMS |
Te (typ.) |
DCR Ω |
Frequency |
|
CR3109-1500 |
30 |
5 | 1510 | 187 |
20 - 1 KHz |
|
CR3110-3000 |
75 | 15 | 3100 |
515 |
20 - 1 KHz |
|
CR3111-3000 |
100 | 19 | 3150 | 390 |
20 - 1 KHz |
|
CR3113-2000 |
150 | 16 | 2125 | 58 |
20 - 1 KHz |
