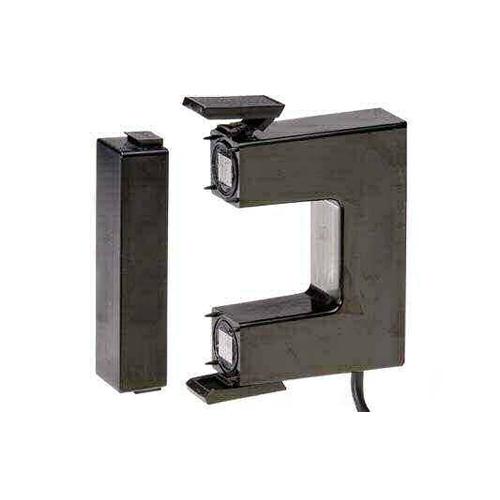

Split-core Current Transformer
-
Price
Price on request ≥1piece
-
Model Number
606 Series -
Data Sheet
-
Package
Original packaging -
Specs
606 Series -
Quantity
- +Send Inquiry
Find Similar Products
-
AC Current Transformer to DC Current (4-20 mA - Loop Powered)
Model Number：T201
MOQ：1
-
DC Current Trasducer to DC Current (4..20 mA - Loop Powered)
Model Number：T201DC
MOQ：1
-
Loop Powered Transmitter for Pt100 and Ni100 Probes
Model Number：T120
MOQ：1
-
Isolated Loop Powered Universal Temperature Transmitter
Model Number：T121
MOQ：1
-
Passive Current Transducers 100 ADC (4-20 mA - Current Loop)
Model Number：T201DC-100
MOQ：1
-
AC/DC Contactless TRMS Direct and Alternate Current Transformers
Model Number：T201DCH
MOQ：1
Product Description
The 606 Split Core Current Transformers are designed for assembly to an existing electrical installation without the need for dismantling the primary bus or cables.
These current transformers are a weather proof design suitable for use outdoor or in direct burial applications. The transformer cases are UV stabilized thermoplastic and filled with polyurethane resin. The mating surfaces of the transformer cores are protected by a rubber 'O' ring.
606 Series Split-core Current Transformer Features
Secondary Cable: Two No. 16 AWG, 6’ Long, Direct Burial, UV Res. UL Type TC
606 Series Split-core Current Transformer Specifications
Frequency: 50-400Hz
Insulation Level: 0.6 kV, BIL 10 kV full wave
Continuous Thermal Current Rating Factor: 1.33 at 30°C amb., 1.00 at 55°C amb
Weight: 4.5 lbs
606 Series Split-core Current Transformer Applications
For Energy Management Systems and Instrumentation Equipment
606 Series Split-core Current Transformer PART NUMBERS
These current transformers are a weather proof design suitable for use outdoor or in direct burial applications. The transformer cases are UV stabilized thermoplastic and filled with polyurethane resin. The mating surfaces of the transformer cores are protected by a rubber 'O' ring.
606 Series Split-core Current Transformer Features
Secondary Cable: Two No. 16 AWG, 6’ Long, Direct Burial, UV Res. UL Type TC
606 Series Split-core Current Transformer Specifications
Frequency: 50-400Hz
Insulation Level: 0.6 kV, BIL 10 kV full wave
Continuous Thermal Current Rating Factor: 1.33 at 30°C amb., 1.00 at 55°C amb
Weight: 4.5 lbs
606 Series Split-core Current Transformer Applications
For Energy Management Systems and Instrumentation Equipment
606 Series Split-core Current Transformer PART NUMBERS
|
Part Number |
Current Ratio |
Burden VA |
ANSI Metering Class at 60Hz |
|
606-201 |
200:5A |
2.5 |
1% |
|
606-251 |
250:5A |
3.0 |
1% |
|
606-301 |
300:5A |
3.5 |
1% |
|
606-351 |
350:5A |
4.0 |
1% |
|
606-402 |
400:5A |
5.0 |
1% |
|
606-501 |
500:5A |
6.0 |
1% |
|
606-601 |
600:5A |
8.0 |
1% |
|
606-751 |
750:5A |
10.0 |
1% |
|
606-801 |
800:5A |
12.0 |
1% |
|
606-102 |
1000:5A |
15.0 |
1% |
|
606-122 |
1200:5A |
20.0 |
1% |
