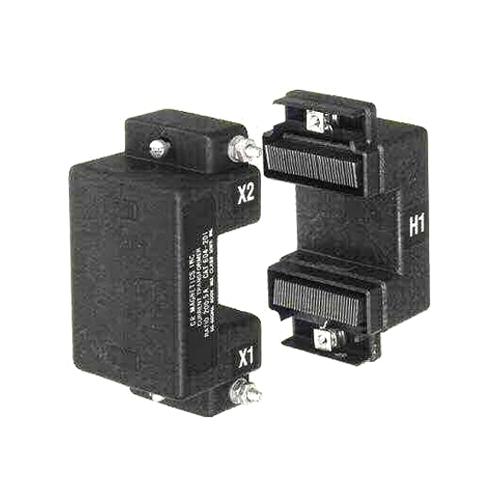

Split-core Current Transformer
-
Price
Price on request ≥1piece
-
Model Number
604 Series -
Data Sheet
-
Package
Original packaging -
Specs
604 Series -
Quantity
- +Send Inquiry
Find Similar Products
-
AC Current Transformer to DC Current (4-20 mA - Loop Powered)
Model Number：T201
MOQ：1
-
DC Current Trasducer to DC Current (4..20 mA - Loop Powered)
Model Number：T201DC
MOQ：1
-
Loop Powered Transmitter for Pt100 and Ni100 Probes
Model Number：T120
MOQ：1
-
Isolated Loop Powered Universal Temperature Transmitter
Model Number：T121
MOQ：1
-
Passive Current Transducers 100 ADC (4-20 mA - Current Loop)
Model Number：T201DC-100
MOQ：1
-
AC/DC Contactless TRMS Direct and Alternate Current Transformers
Model Number：T201DCH
MOQ：1
Product Description
The 604 Series Split Core Current Transformer is designed for assembly to an existing electrical installation without the need for dismantling the primary bus or cables.
The Model 604-1000T is intended for use with high input impedance devices.
The output can be rectified and filtered for devices requiring DC input. The non-linearity and voltage drop of the rectifiers and filters must be considered in the choice of the loading impedance.
604 Series Split-core Current Transformer Features
Terminals: 10-32 brass studs with one flatwasher and two regular nuts
Flexible Leads: UL 1015 105° C, CSA approved, #16 AWG, 24" long unless otherwise specified
604 Series Split-core Current Transformer Specifications
Frequency: 50-400Hz
Insulation Level: 0.6 kV, BIL 10 kV full wave
Continuous Thermal Current Rating Factor:
Models 604-101 – 604-401:
1.33 at 30° C amb
1.00 at 55° C amb
Model 604-1000T:
450A at 30° C amb
350A at 55° C amb
Approximate Weight: 2.5 lbs
604 Series Split-core Current Transformer Applications
For Energy Management Systems and Instrumentation
604 Series Split-core Current Transformer PART NUMBERS
The Model 604-1000T is intended for use with high input impedance devices.
The output can be rectified and filtered for devices requiring DC input. The non-linearity and voltage drop of the rectifiers and filters must be considered in the choice of the loading impedance.
604 Series Split-core Current Transformer Features
Terminals: 10-32 brass studs with one flatwasher and two regular nuts
Flexible Leads: UL 1015 105° C, CSA approved, #16 AWG, 24" long unless otherwise specified
604 Series Split-core Current Transformer Specifications
Frequency: 50-400Hz
Insulation Level: 0.6 kV, BIL 10 kV full wave
Continuous Thermal Current Rating Factor:
Models 604-101 – 604-401:
1.33 at 30° C amb
1.00 at 55° C amb
Model 604-1000T:
450A at 30° C amb
350A at 55° C amb
Approximate Weight: 2.5 lbs
604 Series Split-core Current Transformer Applications
For Energy Management Systems and Instrumentation
604 Series Split-core Current Transformer PART NUMBERS
|
Part Number |
Current Ratio |
Burden VA |
Accuracy at 60 Hz |
|
604-101 |
100:5 |
1.00 |
±5% |
|
604-1250 |
125:5 |
1.00 |
±5% |
|
604-151 |
150:5 |
1.00 |
±4% |
|
604-1750 |
175:5 |
1.00 |
±3% |
|
604-201 |
200:5 |
1.00 |
±2% |
|
604-251 |
250:5 |
2.00 |
±2% |
|
604-301 |
300:5 |
2.00 |
±1.5% |
|
604-351 |
350:5 |
2.50 |
±1.5% |
|
604-401 |
400:5 |
2.50 |
±1.5% |
|
604-1000T |
100:0.1 |
See Graph |
±3% |
