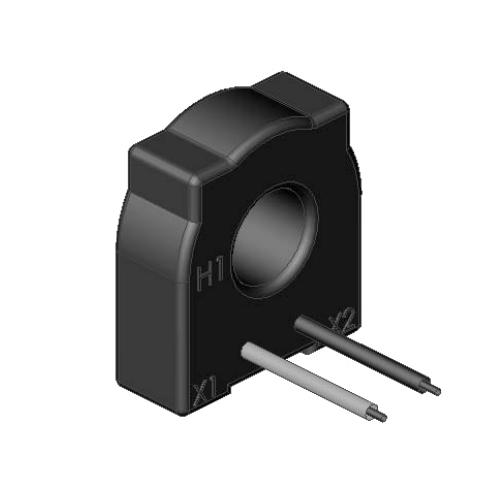

Remote Electrical Current Indicator
-
Price
Price on request ≥1piece
-
Model Number
Model 18 -
Data Sheet
-
Package
Original packaging -
Specs
Model 18 -
Quantity
- +Send Inquiry
Find Similar Products
-
AC Current Transformer to DC Current (4-20 mA - Loop Powered)
Model Number：T201
MOQ：1
-
DC Current Trasducer to DC Current (4..20 mA - Loop Powered)
Model Number：T201DC
MOQ：1
-
Loop Powered Transmitter for Pt100 and Ni100 Probes
Model Number：T120
MOQ：1
-
Isolated Loop Powered Universal Temperature Transmitter
Model Number：T121
MOQ：1
-
Passive Current Transducers 100 ADC (4-20 mA - Current Loop)
Model Number：T201DC-100
MOQ：1
-
AC/DC Contactless TRMS Direct and Alternate Current Transformers
Model Number：T201DCH
MOQ：1
Product Description
CR Magnetics offers a versatile line of rugged wire lead current transformers. Installed around a current-carrying wire, the sensor provides a current output relative to the AC input current (within specification limits). With the output connected across a resistive load (burden), the voltage developed is proportional to the input current.
Model 18 Remote Electrical Current Indicator Features
• Low cost
• Non-contact, isolated measurement
• Surface Mounting bracket available for Models 17 and 18.
• Two different standard ratios
Model 18 Remote Electrical Current Indicator Features Specifications
• Case Material: Black Thermoplastic
• Construction: Epoxy Encapsulated
• Maximum Continuous Primary Current 4 X Ir.
• Insulation Voltage: 3500 Vac/1min.
Model 18 Remote Electrical Current Indicator Features Applications
• Remote Monitoring of Electrical Loads.
• Input to electrical control system.
• Detect open heater elements
• Indicate Phase Loss
• Monitor Motor Operation.
Model 18 Remote Electrical Current Indicator Features ORDER INFORMATION
Model 18 Remote Electrical Current Indicator Features
• Low cost
• Non-contact, isolated measurement
• Surface Mounting bracket available for Models 17 and 18.
• Two different standard ratios
Model 18 Remote Electrical Current Indicator Features Specifications
• Case Material: Black Thermoplastic
• Construction: Epoxy Encapsulated
• Maximum Continuous Primary Current 4 X Ir.
• Insulation Voltage: 3500 Vac/1min.
Model 18 Remote Electrical Current Indicator Features Applications
• Remote Monitoring of Electrical Loads.
• Input to electrical control system.
• Detect open heater elements
• Indicate Phase Loss
• Monitor Motor Operation.
Model 18 Remote Electrical Current Indicator Features ORDER INFORMATION
|
Part Number |
Description |
|
Model 18-600 |
Current Transformer with wire leads, .55 dia. opening, 600 turns |
|
MB-18 |
Surface Mounting Bracket for Model 17 or Model 18 |
