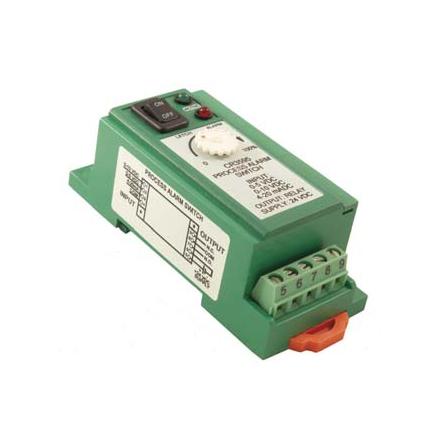

Process Alarm Switch for 0-5Vdc, 0-10Vdc and 4-20mAdc Input
-
Price
Price on request ≥1piece
-
Model Number
CR3595 -
Data Sheet
-
Package
Original packaging -
Specs
CR3595 -
Quantity
- +Send Inquiry
Find Similar Products
-
AC Current Transformer to DC Current (4-20 mA - Loop Powered)
Model Number：T201
MOQ：1
-
DC Current Trasducer to DC Current (4..20 mA - Loop Powered)
Model Number：T201DC
MOQ：1
-
Loop Powered Transmitter for Pt100 and Ni100 Probes
Model Number：T120
MOQ：1
-
Isolated Loop Powered Universal Temperature Transmitter
Model Number：T121
MOQ：1
-
Passive Current Transducers 100 ADC (4-20 mA - Current Loop)
Model Number：T201DC-100
MOQ：1
-
AC/DC Contactless TRMS Direct and Alternate Current Transformers
Model Number：T201DCH
MOQ：1
Product Description
The CR3595 Series Process Alarm Switch provides an effective method for signaling alarm status. This Process Alarm Switch can be fed by any 0-5Vdc, 0-10Vdc or 4-20mAdc process signal. Complete with Green Heartbeat LED and when the signal exceeds the set point the Red LED illuminates and the relay becomes energized.
CR3595 Process Alarm Switch Features
• 35mm DIN Rail or Panel Mountable
• Adjustable Dial for Setting Trip Point
• Super Bright Red LED Indicator for Alarm Status
• Fully Isolated Input from Power Supply and Output
• Connection Drawing Printed on Case
CR3595 Process Alarm Switch Specifications
• +24 VDC +/-10% Power Supply
• Form C Relay, 8A @ 250 VAC, 10A @ 125 VAC, 5A @ 30 VDC
• Input: 0-5Vdc, 0-10Vdc, 4-20 mADC
• Operating Temperature: 0 to 50°C
CR3595 Process Alarm Switch Applications
• Process Control Systems
• Reporting of Alarm Conditions
• Monitor Heater Status
• Monitor Motor Operation
