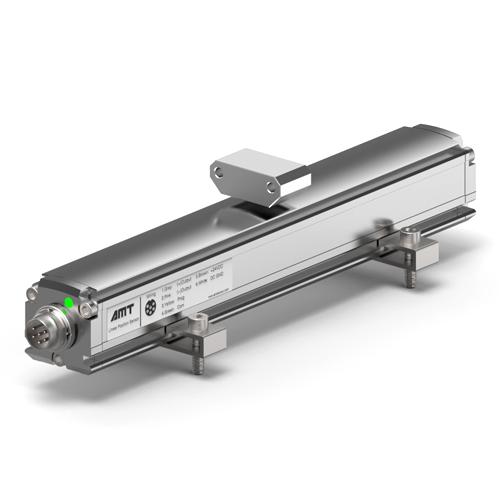

Position Sensors with Aluminum Guide Rail Type
-
Price
Price on request ≥1piece
-
Model Number
KS series -
Data Sheet
-
Package
Original packaging -
Specs
KS series -
Quantity
- +Send Inquiry
Find Similar Products
-
Hall Effect Rotary Position Sensor
Model Number：DWS10-1 / DWS10-3
MOQ：1
-
RPS Series Rotary Position Sensor
Model Number：RPS Serie
MOQ：1
-
RPC Series Rotary Position Control Sensors
Model Number：RPC Series
MOQ：1
-
LPS Series Linear Position Sensors
Model Number：LPS Series
MOQ：1
-
Brass Hall Effect Speed/Position Sensor
Model Number：Speed Position Sensor
MOQ：1
-
Rod style Position Sensor
Model Number：KH Series
MOQ：1
Product Description
KS series position sensors which are of aluminum guide rail type, are suitable for the linear displacement measurement of the outer installation. The electronic head is total inside the aluminum alloy extrusion profiles. The supporting magnetic slider can slid the whole trip. Even if the slider is beyond the range accidently, it would not damage the sensor. It supports the ultra-long magnet sensing distance (up to 6 mm farthest)and is suitable for position measurement for CNC equipment with large vibration. It's features: external installation, compact structure, convenience.
It can be widely applied in all kinds of NC machine tools, such as pressing machinery, building materials, wood processing machinery, etc.
Products Data:
|
|
Analog output |
SSI output |
|
Parameters |
Specifications |
Specifications |
|
Stroke lengths |
50-4500mm |
50-4500mm |
|
Out put |
4~20mA,0~20mA;0~10V,-10~+10V |
24/25/26 Bit, Binary or Gray |
|
Resolution |
16bit D/A |
2/ 5/ 10/ 20/ 50/100um |
|
Linearity |
< ±0.01%F.S.( Minimum ±50μm) |
< ±0.01%F.S.( Minimum ±40μm) |
|
Repertability |
< ±0.002%F.S.( Minimum ±2μm) |
< ±0.002%F.S.( Minimum ±1 reading ) |
|
Frequency response |
Range related |
Range related |
|
Input voltage |
24VDC (-15/+20%) |
|
|
Operating temperature |
-40℃ ~ +85℃ |
|
|
Protection |
IP65 |
|
|
Thread |
Clamp , M5X20 |
|
Outline dimensions:
Wiring:
Status indicator:
