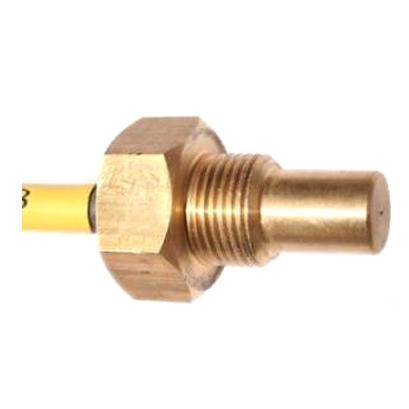

Brass Hall Effect Speed/Position Sensor
-
Price
Price on request ≥1piece
-
Model Number
Speed Position Sensor -
Data Sheet
-
Package
Original packaging -
Specs
Speed Position Sensor -
Quantity
- +Send Inquiry
Find Similar Products
-
Hall Effect Rotary Position Sensor
Model Number：DWS10-1 / DWS10-3
MOQ：1
-
RPS Series Rotary Position Sensor
Model Number：RPS Serie
MOQ：1
-
RPC Series Rotary Position Control Sensors
Model Number：RPC Series
MOQ：1
-
LPS Series Linear Position Sensors
Model Number：LPS Series
MOQ：1
-
Rod style Position Sensor
Model Number：KH Series
MOQ：1
-
Position Sensor-KP Series
Model Number：KP Series
MOQ：1
Product Description
Description
Speed sensors are unique for each customer but very cost effective as we use a very reliable and proven technology building block.
Applications
They are used in a wide range of applications, including -
• Engine Gear Speed
• Cam & Crankshaft Speed
• Fan Speed
• Speed Governer Systems
• Sprocket Speed
• Stop Motion Detector
Specifications
| Supply Voltage | 3.8 to 30V DC |
| Supply Current (max. @ 25℃) | 10mA |
| Output Type | Sink, Latching |
| Output Current (max.) | 20mA |
| Magnetic Actuation | Bipolar Latch |
| Operation Temperature range | -40℃ to 150℃ |
| Output Voltage | 0.4V DC |
| Step Response (Rising, 10 to 90%) | 0.05μs typ., 1.5μs max. |
| Step Response (Falling, 90 to 10%) | 0.15μs typ., 1.5μs max. |
| Operating Point @ 25℃ | 5mT (50G) typ. |
| Release Point @ 25℃ | -5mT (-50G) typ. |
| Differential | 10mT (100G) typ. |
| Leakage Current | 10μA |
