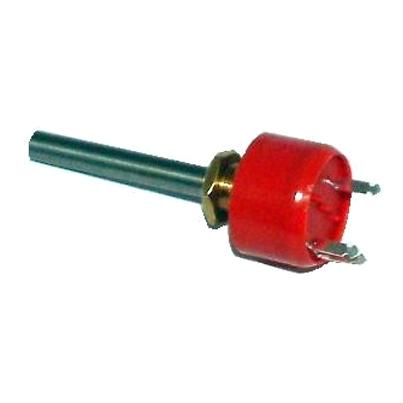

RPC Series Rotary Position Control Sensors

ISweek online 2h ago

ISweek_com

Send Inquiry Chat Now

  • Price

    Price on request   ≥1piece

  • Model Number

    RPC Series

  • Data Sheet

  • Package

    Original packaging

  • Specs

    RPC Series

  • Quantity

    - +

  • Send Inquiry

Find Similar Products

Product Description

Rotary Position Control Sensors
RPC Series


Description

Our New Rotary Position Control Sensors have been designed with a robust and reliable construction in order to operate in harsh and tough environments. Commonly used in a range of automotive applications, these sensors are also used in marine, machinery, transport and agriculutral applications.


Features
• Bush Mounting
• Glass Filled Nylon Body
• Stainless Steel Shaft
• Conductive Polymer Track
• Continuous Rotation Available
• RoHS Compliant
• O-ring and Epoxy Seals

Benefits
• Highly reliable
• Robust
• Simple to use
• Long Life
• Easy to install
• Proven technology
• Easily customized


Applications

Our Rotary and Linear Position Sensors are commonly used in various automotive and industrial applications. The list below represents existing customer applications that we know of.

• Transport
• Off-road vehicles
• Marine
• Agriculture
• Machinery
• Machine Tools
• Automotive
• Welding
• Telehandling
• Electrical Chairs


Electrical Data

Standard Resistance Range

 1000 to 10,000 Ohms

Selection Tolerance
  +/- 20%
Angle of Effective Rotation
  330º +/- 3º
Total Mechanical Rotation
  340º +/- 3º
Power Rating
  1.0W @ 70ºC derate for restricted angle
Wiper Current
  30mA max. (limited by dissipation)
Temperature Characteristics
  1% max (+20ºC to +70ºC)
 0 to 200ppm/ºC max

Linearity

 +/- 1.0% typical (+/- 2% max)

Starting Torque
  20mNm maximum
End Stop Torque
  800 mNm maximum

Rotational Life

 300,000 Shaft Revolutions


Ordering Guide
