Product Description

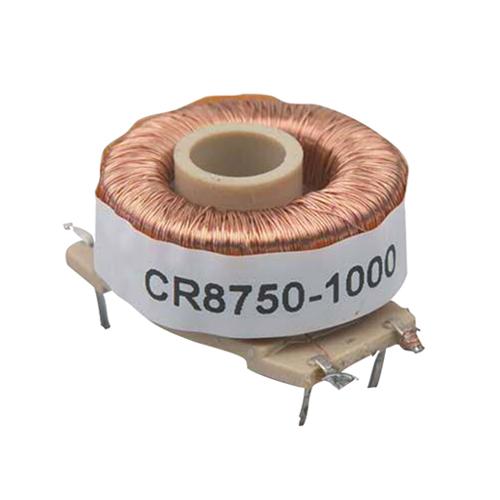

The CR8750 Series, PCB Current Transformer provides a low cost method for monitoring electrical current. The transformer is intended to be mounted on a Printed Circuit Board with the current-carrying wire routed through the center window opening. A five-pin, non-symmetrical mounting pattern ensures correct orientation to the PCB. Two different winding ratios are available to accommodate various applications.
CR8750 Series PCB Current Transformer Features
• Low cost
• 2 different turns ratio
• Non-contact, isolated measurement
CR8750 Series PCB Current Transformer Specifications
• Construction: Core secure via Epoxy resin
• Operating Temperature: -40°C to +85°C
• Stroage Temperature: -45°C to +85°C
• High Potential: 3500 Vac/1 min.
• Frequency: 50 Hz to 60 Hz
CR8750 Series PCB Current Transformer Applications
• Ammeters
• Current measurements
• Watt/VAR/Watthour measurement
CR8750 Series PCB Current Transformer PART NUMBERS
CR8750 Series PCB Current Transformer Features
• Low cost
• 2 different turns ratio
• Non-contact, isolated measurement
CR8750 Series PCB Current Transformer Specifications
• Construction: Core secure via Epoxy resin
• Operating Temperature: -40°C to +85°C
• Stroage Temperature: -45°C to +85°C
• High Potential: 3500 Vac/1 min.
• Frequency: 50 Hz to 60 Hz
CR8750 Series PCB Current Transformer Applications
• Ammeters
• Current measurements
• Watt/VAR/Watthour measurement
CR8750 Series PCB Current Transformer PART NUMBERS
|
PART NUMBER |
TURNS |
|
CR8750-230 |
230 |
|
CR8750-1000 |
1000 |
