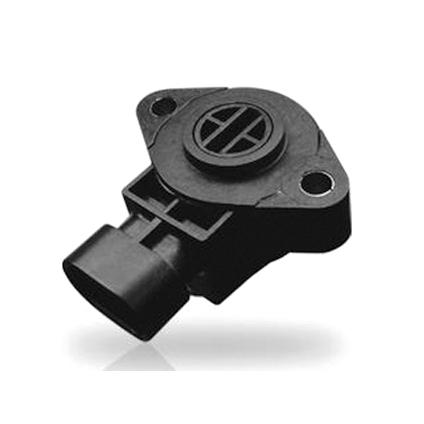

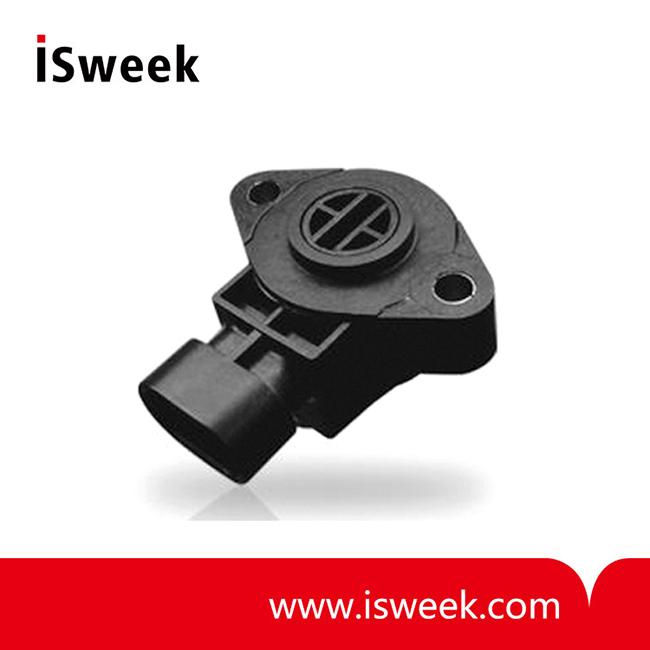

One-piece Intrinsically Linear Angle Position Sensor
-
Price
Price on request ≥1piece
-
Model Number
AN101101 -
Data Sheet
-
Package
Original packaging -
Specs
AN101101 -
Quantity
- +Send Inquiry
Find Similar Products
-
Hall Effect Rotary Position Sensor
Model Number：DWS10-1 / DWS10-3
MOQ：1
-
RPS Series Rotary Position Sensor
Model Number：RPS Serie
MOQ：1
-
RPC Series Rotary Position Control Sensors
Model Number：RPC Series
MOQ：1
-
LPS Series Linear Position Sensors
Model Number：LPS Series
MOQ：1
-
Brass Hall Effect Speed/Position Sensor
Model Number：Speed Position Sensor
MOQ：1
-
Rod style Position Sensor
Model Number：KH Series
MOQ：1
Product Description
AN1 Series Angle Position Sensor Description
The AN1 Series sensors are One-piece, intrinsically linear contact angle position sensors. The sensors operate through the use of Hall Effect technology with magnetic fields generated by permanent magnets. They provide a linear change in voltage output (ratiometric to the input voltage) corresponding to an angular rotation of the input shaft.
AN1 Series Angle Position Sensor Features
• Patented intrinsically linear angle position sensor (ILAPS)
• Magnet/sensor orientation provides linear output from 5⁰ to 85⁰ of rotation without the need for electrical compensation
• Return spring provides resistance to CCW motion
• Fully encapsulated electronics
• RoHS compliant
• IP67
AN1 Series Angle Position Sensor Typical Applications
• Implement (fork lift, agricultural trailer hitch, etc.) position sensing
• Steer, throttle by wire
• Gear selection
• Zero-contact encoder alternative
AN1 Series Angle Position Sensor Environmental Specifications
AN1 Series Angle Position Sensor Electrical Specifications
AN1 Series Angle Position Sensor Mechanical Specifications
AN1 Series Angle Position Sensor Products
The AN1 Series sensors are One-piece, intrinsically linear contact angle position sensors. The sensors operate through the use of Hall Effect technology with magnetic fields generated by permanent magnets. They provide a linear change in voltage output (ratiometric to the input voltage) corresponding to an angular rotation of the input shaft.
AN1 Series Angle Position Sensor Features
• Patented intrinsically linear angle position sensor (ILAPS)
• Magnet/sensor orientation provides linear output from 5⁰ to 85⁰ of rotation without the need for electrical compensation
• Return spring provides resistance to CCW motion
• Fully encapsulated electronics
• RoHS compliant
• IP67
AN1 Series Angle Position Sensor Typical Applications
• Implement (fork lift, agricultural trailer hitch, etc.) position sensing
• Steer, throttle by wire
• Gear selection
• Zero-contact encoder alternative
AN1 Series Angle Position Sensor Environmental Specifications
|
Vibration |
1g RMS axial, 5g RMS horizontal, 8g RMS vertical; 20 Hz to 2 kHz |
|
Operating Temperature |
-40 °C to 125 °C (-40 °F to 257 °F) |
|
Storage Temperature |
-40 °C to 135 °C (-40 °F to 275 °F) |
|
Ingress Protection |
IP67 |
AN1 Series Angle Position Sensor Electrical Specifications
|
Input Voltage |
5.0 VDC ± 10% |
|
Output Voltage vs. Rotation Angle |
0° to 5° : 10% of Input Voltage, 5° to 85°: ratiometric (linear from 10% to 90% of Input Voltage), 85° to 120°: 90% of Input Voltage (see chart) |
|
Input Current |
8 mA @ 5 VDC |
|
Output Current |
-1.25 mA to 1.25 mA |
|
Output Linearity |
±2% |
AN1 Series Angle Position Sensor Mechanical Specifications
|
Housing Material |
Glass Reinforced Plastic |
|
Mechanical Travel |
120° maximum rotation |
|
Rotation Torque |
0.21 Nm (30 in oz) max with return spring |
|
Mass |
24 g (0.85 oz) |
|
Life |
+10 million full cycles |
AN1 Series Angle Position Sensor Products
|
Part Number |
Sensing Direction |
Connector |
Terminal |
Housing |
|
AN101101 |
Counter-clockwise |
Delphi Metri-pack 150 12162185 |
Delphi 12124075 |
Delphi 12162185 |
