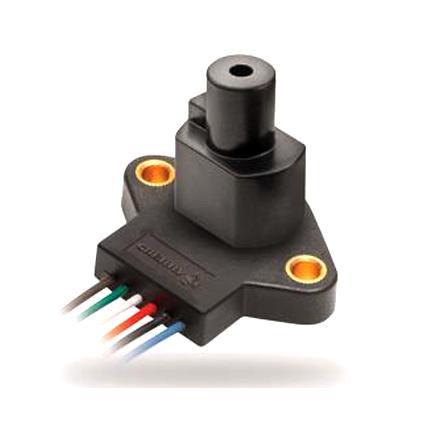

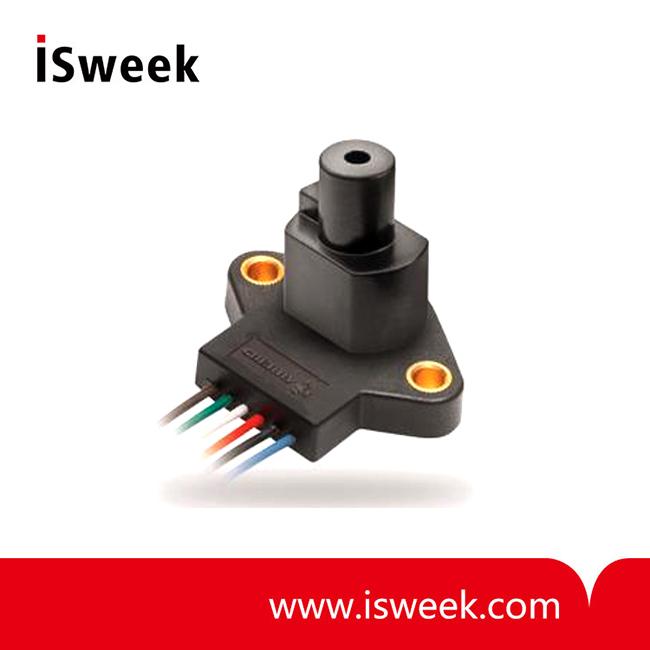

Non-contact Intrinsically Linear Angle Position Sensors
-
Price
Price on request ≥1piece
-
Model Number
AN9 Series -
Data Sheet
-
Package
Original packaging -
Specs
AN9 Series -
Quantity
- +Send Inquiry
Find Similar Products
-
Hall Effect Rotary Position Sensor
Model Number：DWS10-1 / DWS10-3
MOQ：1
-
RPS Series Rotary Position Sensor
Model Number：RPS Serie
MOQ：1
-
RPC Series Rotary Position Control Sensors
Model Number：RPC Series
MOQ：1
-
LPS Series Linear Position Sensors
Model Number：LPS Series
MOQ：1
-
Brass Hall Effect Speed/Position Sensor
Model Number：Speed Position Sensor
MOQ：1
-
Rod style Position Sensor
Model Number：KH Series
MOQ：1
Product Description
AN9 Sensors
Thin, programmable, non-contact magnetic position sensors capable of continuous rotation with dual outputs
AN9 Series Angle Position Sensors Description
The AN9 Series sensors are non-contact, intrinsically linear angle position sensors with two independent outputs. The sensors operate through the use of Hall Effect technology with magnetic fields generated by permanent magnets. They provide a linear change in voltage output (ratiometric to the input voltage) corresponding to an angular rotation of the input shaft.
AN9 Series Angle Position Sensors Features
• Angular position sensor with high tolerance for misalignment
• Non-contact angular position sensing and full 360° rotation
• Dual independent (fully redundant) outputs assure high reliability
• Custom programming available for: angle range, slope, PWM output, custom magnets – contact factory
• No mechanical interface means no parts to wear out or jam
• Comes with 18 AWG 305 mm (12”) wire leads
• RoHS Compliant
• IP67
• Maximum air gap of 5.5 mm (0.22”)*
AN9 Series Angle Position Sensors Typical Applications
• Implement (fork lift, agricultural trailer hitch, etc.) position sensing
• Steer, throttle by wire
• Gear selection
• Zero-contact encoder alternative
• Replacement for smart bearings
• Outboard trim sensing
AN9 Series Angle Position Sensors Environmental Specifications
AN9 Series Angle Position Sensors Electrical Specifications
AN9 Series Angle Position Sensors Mechanical Specifications
AN9 Series Angle Position Sensors Products
Thin, programmable, non-contact magnetic position sensors capable of continuous rotation with dual outputs
AN9 Series Angle Position Sensors Description
The AN9 Series sensors are non-contact, intrinsically linear angle position sensors with two independent outputs. The sensors operate through the use of Hall Effect technology with magnetic fields generated by permanent magnets. They provide a linear change in voltage output (ratiometric to the input voltage) corresponding to an angular rotation of the input shaft.
AN9 Series Angle Position Sensors Features
• Angular position sensor with high tolerance for misalignment
• Non-contact angular position sensing and full 360° rotation
• Dual independent (fully redundant) outputs assure high reliability
• Custom programming available for: angle range, slope, PWM output, custom magnets – contact factory
• No mechanical interface means no parts to wear out or jam
• Comes with 18 AWG 305 mm (12”) wire leads
• RoHS Compliant
• IP67
• Maximum air gap of 5.5 mm (0.22”)*
AN9 Series Angle Position Sensors Typical Applications
• Implement (fork lift, agricultural trailer hitch, etc.) position sensing
• Steer, throttle by wire
• Gear selection
• Zero-contact encoder alternative
• Replacement for smart bearings
• Outboard trim sensing
AN9 Series Angle Position Sensors Environmental Specifications
|
Vibration |
15g sinusoidal, 9.26g RMS axial; 40 Hz – 2 kHz all 3 axes |
|
Operating Temperature |
-40 °C to 125 °C (-40 °F to 257 °F) |
|
Storage Temperature |
-40 °C to 150 °C (-40 °F to 302 °F) |
|
Ingress Protection |
IP67 |
AN9 Series Angle Position Sensors Electrical Specifications
|
Input Voltage |
5.0 VDC ± 10% |
|
Output Voltage |
10% to 90% of input (see graph for voltage vs. rotation angle characteristics) |
|
Input Current |
14 mA typ., 16 mA max. |
|
Output Current |
-8 mA to 8 mA |
|
Output Accuracy |
±3.5% |
|
Output Linearity |
±3.5% |
|
Maximum Overvoltage |
16 VDC |
|
Absolute Max. Output Current |
±30 mA |
|
Output Type |
Analog (PWM available) |
AN9 Series Angle Position Sensors Mechanical Specifications
|
Housing Material |
Glass Reinforced Plastic |
|
Mechanical Travel |
0° to 360° (continuous) |
|
Maximum Air Gap* *with AS500106 magnet carrier |
5.5 mm (0.22") |
|
Maximum Center-To Center Offset |
2 mm radial (magnet to center) |
AN9 Series Angle Position Sensors Products
|
Part Number (Sensor) |
Sensing Range |
Wires |
|
AN920031 |
180° |
18 AWG x 305 mm (12") |
|
AN920032 |
360° |
18 AWG x 305 mm (12") |
|
AN920035 |
45° |
18 AWG x 305 mm (12") |
|
AN920036 |
90° |
18 AWG x 305 mm (12") |
