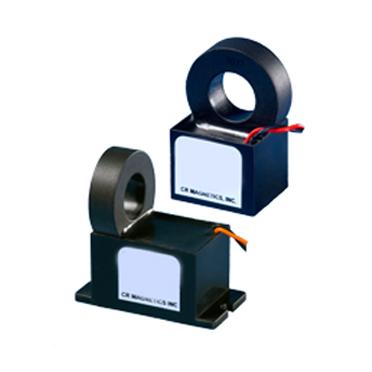

Low Cost, Self-powered, Fixed Set-point Current Switch

ISweek online 2h ago

ISweek_com

Send Inquiry Chat Now

  • Price

    Price on request   ≥1piece

  • Model Number

    CR9350

  • Data Sheet

  • Package

    Original packaging

  • Specs

    CR9350

  • Quantity

    - +

  • Send Inquiry

Find Similar Products

Product Description

The CR9350 Series is a low cost, self-powered, fixed set-point Current Switch designed for applications that require an on-off indication of current flow. Current levels above the guaranteed full-on level will turn the output to full on. The Current Switch is recommended only for applications where the continuous operating current is above the rated full on level of 350 mA. Operation below this point will not drive the output device full-on and derate the output ratings. The unit is available with a NPN or PNP output transistor for switching DC and ACA output for AC switching. Connections can be made directly to items such as a PLC or electromechanical relay. Note that connections made directly to an inductive device such as an electromechanical relay will require a customer supplied clamping diode for DC operation or a snubber network for AC operation.

CR9350 Current Switch Features
• Economically Priced
• Low fixed trip point
• Fully isolated
• Reverse output polarity protected
• Self-powered
• Panel mounting case (optional)

CR9350 Current Switch Specifications
• Frequency: 50 to 400 Hz
• Insulation Level: 600 Vac
• Rated full-on: 0.350 Aac RMS
• Turn-on time: 100 ms max. @ rated full-on
• Turn-off time: 250 ms max. to 80% of Vce

CR9350 Current Switch Applications
• Continuity
• Proving Switch

CR9350 Current Switch PART NUMBER
