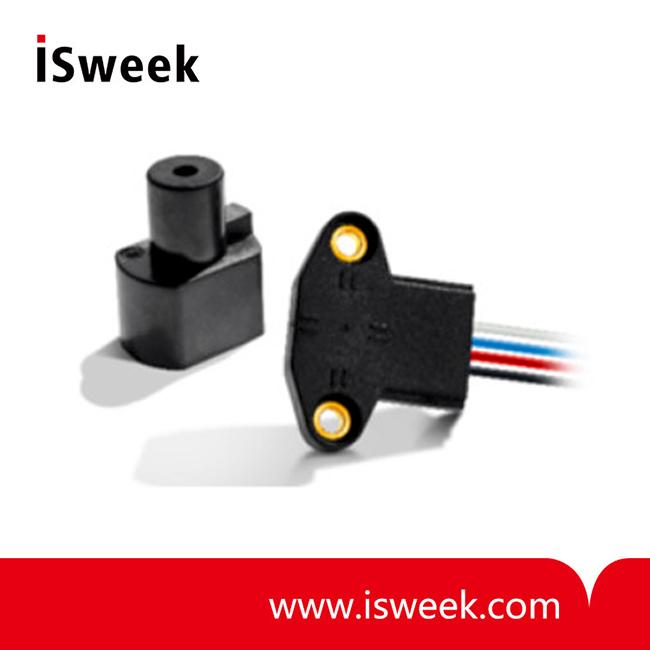

Intrinsically Linear Angle Position Sensors
-
Price
Price on request ≥1piece
-
Model Number
ANG-11HAW1 / ANG-21HAW1 -
Data Sheet
-
Package
Original packaging -
Specs
ANG-11HAW1 / ANG-21HAW1 -
Quantity
- +Send Inquiry
Find Similar Products
-
Hall Effect Rotary Position Sensor
Model Number：DWS10-1 / DWS10-3
MOQ：1
-
RPS Series Rotary Position Sensor
Model Number：RPS Serie
MOQ：1
-
RPC Series Rotary Position Control Sensors
Model Number：RPC Series
MOQ：1
-
LPS Series Linear Position Sensors
Model Number：LPS Series
MOQ：1
-
Brass Hall Effect Speed/Position Sensor
Model Number：Speed Position Sensor
MOQ：1
-
Rod style Position Sensor
Model Number：KH Series
MOQ：1
Product Description

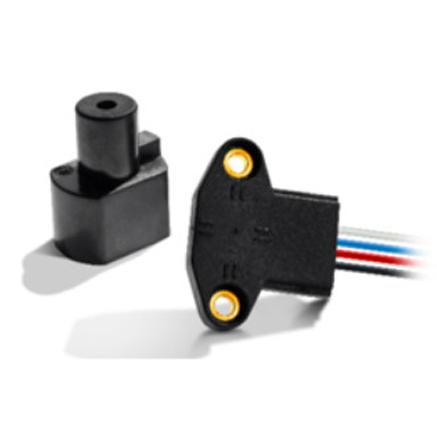

ANG Sensors
Thin, programmable, non-contact magnetic position sensors capable of continuous rotation, with dual outputs available.
ANG Series Angle Position Sensors Description
The ANG Series sensors are non-contact, intrinsically linear position sensors with one or two independent (redundant) outputs. The sensors operate through the use of Hall Effect technology with magnetic fields generated by permanent magnets. They provide a linear change in voltage output (ratiometric to the input voltage) corresponding to an angular rotation of the input shaft.
Actuator magnet part number AS500106 is required to assure proper operation (ordered separately).
ANG Series Angle Position Sensors Features
• Angular position sensor with high tolerance for misalignment
• Non-contact angular position sensing and full 360 O rotation
• Custom programming available for: angle range, slope, PWM output – contact factory
• No mechanical interface means no parts to wear out or jam
• Comes with 20 AWG 305 mm (12”) discrete wire leads
• RoHS Compliant
• IP68*
• Maximum air gap of 6 mm (0.24”)
• Compliant to industrial/automotive EMC/EMI/ESD directives
ANG Series Angle Position Sensors Typical Applications
• Hydraulic valves
• Hydraulic controls
• Electric drives
• Pneumatic controls
• Zero-contact encoder alternative
• Gear selection / shifting position
• Lifting / ride height position
• Throttle / pedal position
• Steering wheel position
ANG Series Angle Position Sensors Environmental Specifications
**Contact ZF for details on testing conditions
ANG Series Angle Position Sensors Electrical Specifications
ANG Series Angle Position Sensors Mechanical Specifications
ANG Series Angle Position Sensors Products
Thin, programmable, non-contact magnetic position sensors capable of continuous rotation, with dual outputs available.
ANG Series Angle Position Sensors Description
The ANG Series sensors are non-contact, intrinsically linear position sensors with one or two independent (redundant) outputs. The sensors operate through the use of Hall Effect technology with magnetic fields generated by permanent magnets. They provide a linear change in voltage output (ratiometric to the input voltage) corresponding to an angular rotation of the input shaft.
Actuator magnet part number AS500106 is required to assure proper operation (ordered separately).
ANG Series Angle Position Sensors Features
• Angular position sensor with high tolerance for misalignment
• Non-contact angular position sensing and full 360 O rotation
• Custom programming available for: angle range, slope, PWM output – contact factory
• No mechanical interface means no parts to wear out or jam
• Comes with 20 AWG 305 mm (12”) discrete wire leads
• RoHS Compliant
• IP68*
• Maximum air gap of 6 mm (0.24”)
• Compliant to industrial/automotive EMC/EMI/ESD directives
ANG Series Angle Position Sensors Typical Applications
• Hydraulic valves
• Hydraulic controls
• Electric drives
• Pneumatic controls
• Zero-contact encoder alternative
• Gear selection / shifting position
• Lifting / ride height position
• Throttle / pedal position
• Steering wheel position
ANG Series Angle Position Sensors Environmental Specifications
|
Operating Temperature |
-40⁰C to 140⁰C (-40⁰F to 284⁰F) |
|
Ingress Protection |
IP68* |
ANG Series Angle Position Sensors Electrical Specifications
|
Input
Supply Voltage
5.0 VDC ± 10%
|
Maximum Overvoltage
16 VDC
|
Reverse Battery Protection
12 VDC
|
|
Output Signal |
|
0.5 – 4.5 VDC (with 5 VDC input) |
|
Input Current |
Single output
Dual output
|
8 mA typ., 10 mA max.
16 mA typ., 20 mA max.
|
|
Resolution |
12 bit |
|
|
Accuracy, overall |
Programmed angle sensing range 35 ⁰ < 65 ⁰ : ± 2.5% Full scale
Programmed angle sensing range: 65 ⁰ < 360 ⁰ : ± 2.0% Full scale
|
|
|
Output Linearity |
Programmed angle sensing range 35 ⁰ < 65 ⁰ : ± 2.5% Full scale
Programmed angle sensing range: 65 ⁰ < 360 ⁰ : ± 1.0% Full scale
|
|
ANG Series Angle Position Sensors Mechanical Specifications
|
Measuring Range |
0 ⁰ to 360 ⁰ , customizable (see graph) |
|
Air Gap |
1 mm to 6 mm (application dependent); 2.5 mm typ. |
|
Eccentricity |
± 2 mm (0.08”) |
ANG Series Angle Position Sensors Products
|
Part Number |
Output |
Interface |
|
ANG-11HAW1 |
Analog single |
20 AWG x 305 mm (12") discrete wires |
|
ANG-21HAW1 |
Analog dual |
20 AWG x 305 mm (12") discrete wires |
