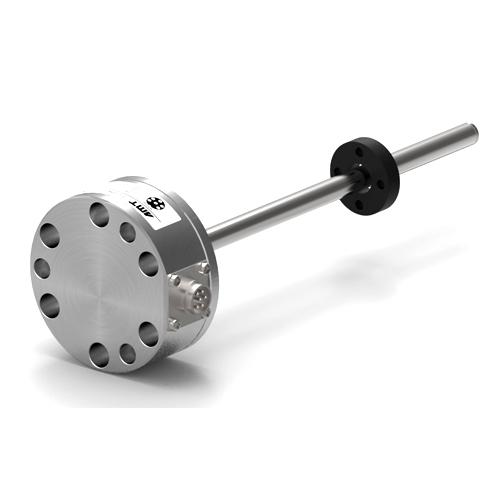

Flange Mounting Position Sensor
-
Price
Price on request ≥1piece
-
Model Number
GB Series -
Data Sheet
-
Package
Original packaging -
Specs
GB Series -
Quantity
- +Send Inquiry
Find Similar Products
-
Hall Effect Rotary Position Sensor
Model Number：DWS10-1 / DWS10-3
MOQ：1
-
RPS Series Rotary Position Sensor
Model Number：RPS Serie
MOQ：1
-
RPC Series Rotary Position Control Sensors
Model Number：RPC Series
MOQ：1
-
LPS Series Linear Position Sensors
Model Number：LPS Series
MOQ：1
-
Brass Hall Effect Speed/Position Sensor
Model Number：Speed Position Sensor
MOQ：1
-
Rod style Position Sensor
Model Number：KH Series
MOQ：1
Product Description
The electronic head's size of GB series products is 34mm.They adopt the sealed type design and very suitable for U earrings hydraulic cylinders' built-in installation. They have many specific advantages: compact structure, strong anti-interference ability, sealed stain-resistance, oil-resistance, waterproof (vapor).
Analog outputs includee: dc current 4 ~ 20 mA ( forward, reverse ) and dc voltage 0 ~ 10 V (forward, reverse); SSI outputs include: 24, 25, 26 bit binary or gray code; The products can be widely used in engineering machinery, mechanical power and some other occasions.
Products Data:
|
|
Analog output |
SSI output |
|
Project name |
Specifications |
Specifications |
|
Stroke lengths |
50-3250mm |
50-3250mm |
|
Out put |
4~20mADC; 0~10VDC |
24, 25bit, Binary or Gray |
|
Resolution |
16bit D/A |
5/ 10/ 20/ 50/100um |
|
Linearity |
<±0.01%F.S. (Minimum ±50μm) |
<±0.02%F.S. (Minimum ±60μm) |
|
Repertability |
<±0.001%F.S. (Minimum ±1μm) |
<±0.001%F.S. (Minimum ±1 Minimum) |
|
Frequency response |
Range related |
Range related |
|
Input voltage |
24VDC (-15/+20%) |
|
|
Operating temperature |
-40℃ ~ +85℃ |
|
|
Protection |
IP68 |
|
|
Thread |
flange , six M6X16 |
|
Outline dimensions:
Wiring:
