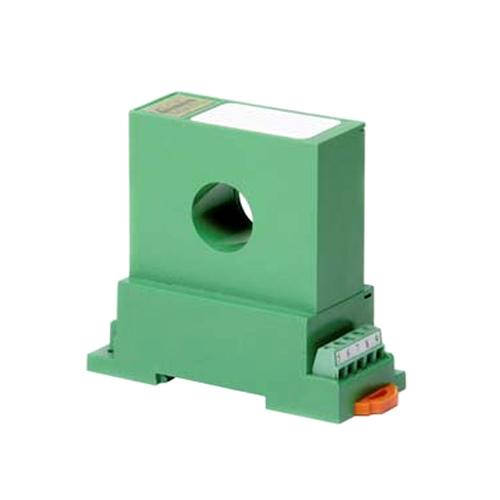

DC Hall Effect Current Transducer +/- 10 VDC Output

Find Similar Products

•

  AC Current Transformer to DC Current (4-20 mA - Loop Powered)

  Model Number：T201

  MOQ：1

•

  DC Current Trasducer to DC Current (4..20 mA - Loop Powered)

  Model Number：T201DC

  MOQ：1

•

  Loop Powered Transmitter for Pt100 and Ni100 Probes

  Model Number：T120

  MOQ：1

•

  Isolated Loop Powered Universal Temperature Transmitter

  Model Number：T121

  MOQ：1

•

  Passive Current Transducers 100 ADC (4-20 mA - Current Loop)

  Model Number：T201DC-100

  MOQ：1

•

  AC/DC Contactless TRMS Direct and Alternate Current Transformers

  Model Number：T201DCH

  MOQ：1

Product Description

CR5211 DC Current Sensing Transducers are designed to provide a DC signal which is proportional to a DC sensed current. These devices are designed for direct current only, tartgeting them towards general and daily applications. The ranges 2 to 10 Amp utilize an advanced Magnetic Modulator technology and the ranges 20 amps and above utilize Hall Effect technology. The CR5211S has a +/- 10VDC that is Bi-Directional, ideal for battery charging applications.

CR5211 DC Hall Effect Current Transducer Features
• Non-contact DC current sensing
• Closed loop sensing for accuracy
• +/- 10 VDC output
• Connection diagram printed on case
• DIN rail or panel mount

CR5211 DC Hall Effect Current Transducer Specifications
• Thermal Drift: 500 PPM/C
• Operating Temperature: 0°C to +50°C
• Response Time: 250 ms
• Insulation Voltage: 2500 VDC
• MTBF: Greater than 100 K hours
• Supply Voltage: 24 VDC
• Frequency Range: DC
• Output Load: 2 K Ω or greater
• Basic Accuracy: 1.0 %

CR5211 DC Hall Effect Current Transducer Applications
• Power supply management
• DC motor drives
• Battery chargers and systems
• Mobile applications

CR5211 DC Hall Effect Current Transducer PART NUMBERS
