Product Description

The Current Mark Displays are designed as a low cost method for providing a visual indication and measurement of electrical current flow. The current-carrying wire is routed through the window opening in the current sensing transformer, providing sensing and power for the instrument. CRM1000 Series high efficiency, 7 LED indicator that illuminates as the current approachs the full scale range.

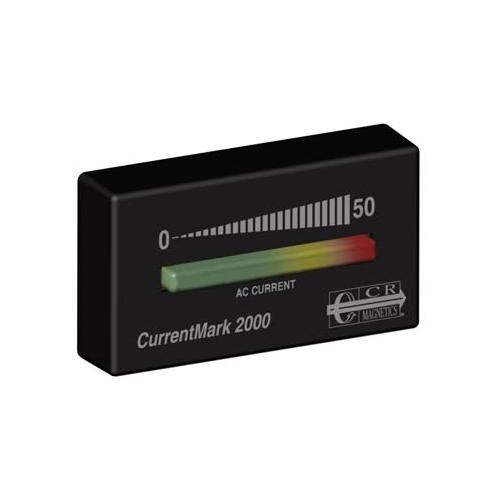

CRM2000 Series Current Mark Display provides a modern looking light graph with nice visual appeal.

CRM2000 Series Current Mark Display Features
• Self Powered
• Quick Visual Marking of AC Current
• Compact
• Low Cost for high Volume OEM Applications

CRM2000 Series Current Mark Display Specifications
• 50 AAC Max, 600 VAC Max rating
• Thermoplastic Case Material
• 50 - 2000 Hz Bandwidth
• -300C to +600C Operating Temperature
• -550C to +850C Storage Temperature
• Display is supplied in mounting case with LED attached to current sensing transformer.
• Regulatory Agencies

CRM2000 Series Current Mark Display Applications
• Monitor Status of Heater Elements
• Observe Remote Loads
• Indicate Phase Loss
• Monitor Motor Operation

CRM2000 Series Current Mark Display PART NUMBERS
