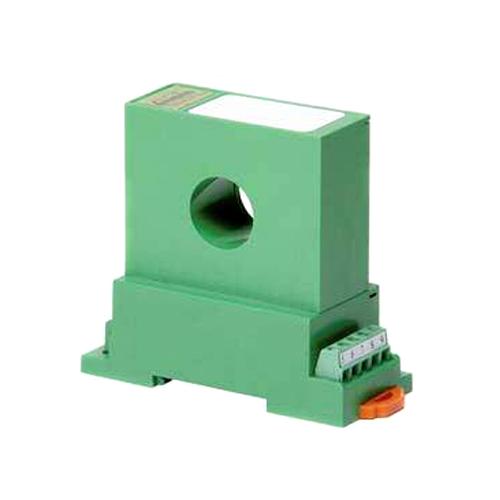

Average RMS AC Current Transducer - Single Element

Find Similar Products

•

  AC Current Transformer to DC Current (4-20 mA - Loop Powered)

  Model Number：T201

  MOQ：1

•

  DC Current Trasducer to DC Current (4..20 mA - Loop Powered)

  Model Number：T201DC

  MOQ：1

•

  Loop Powered Transmitter for Pt100 and Ni100 Probes

  Model Number：T120

  MOQ：1

•

  Isolated Loop Powered Universal Temperature Transmitter

  Model Number：T121

  MOQ：1

•

  Passive Current Transducers 100 ADC (4-20 mA - Current Loop)

  Model Number：T201DC-100

  MOQ：1

•

  AC/DC Contactless TRMS Direct and Alternate Current Transformers

  Model Number：T201DCH

  MOQ：1

Product Description

The CR4411 Series Average RMS Current Transducers and Transmitters are designed to provide a calibrated DC output proportional to the AC current input. Designed for multi-point current sensing, these devices provide excellent features in a high value package. Average RMS is recommended when sensing current waveforms that have a fixed frequency, and are usually for loads operated from standard utility power.

CR4411 Average RMS AC Current Transducer Features
• Analog 0 - 10 VDC output
• 24 VDC powered
• Use with external C/T’s
• Highest precision available
• Connection diagram printed on case
• DIN Rail or Panel Mount

CR4411 Average RMS AC Current Transducer Specifications
• Frequency Range: 50 Hz - 400 Hz
• Basic Accuracy: 0.5%
• Output Load: 2kΩ or Greater
• Power Source: 24 VDC
• Insulation Voltage: 2500 VDC
• Response Time: 250 ms
• MTBF: Greater than 100 K hours
• Operating Temperature: 0°C to +50°C
• Thermal Drift: 500 PPM/°C
• Calibration: Average Sensing, RMS Calibrated

CR4411 Average RMS AC Current Transducer Applications
• Multi-point Current Sensing and Control Panels
• Monitor Motor Faults
• Monitor Heating Elements
• Monitor Lighting Elements

CR4411 Average RMS AC Current Transducer PART NUMBERS
