• Aluminum Alloy Guide Displacement Sensor
Mouse over image to zoom

Aluminum Alloy Guide Displacement Sensor

ISweek online 2h ago

ISweek_com

Send Inquiry Chat Now

  • Price

    Price on request   ≥1piece

  • Model Number

    CS series

  • Data Sheet

  • Package

    Original packaging

  • Specs

    CS series

  • Quantity

    - +

  • Send Inquiry

Find Similar Products

Product Description

Features:

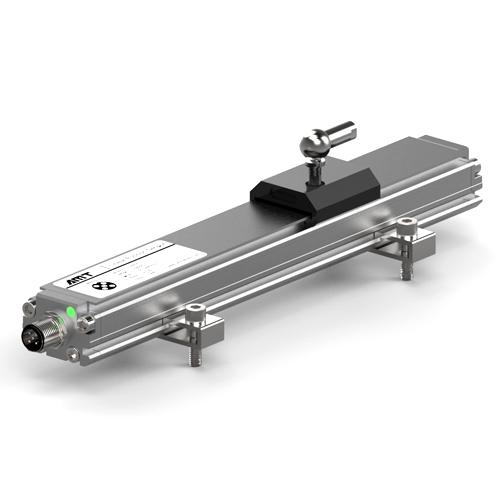

CS series aluminum alloy guide displacement sensor, applicable to the outer installation linear displacement measurement. Product's electronic head part of the total internal in aluminium alloy profiles inside, supporting magnetic slider can, even if the whole sliding block accident beyond range will not damage sensor, support Liverpool magnetic block induction distance (farthest up to 12 mm), suitable for vibration large nc equipment position measurement. External installation, compact structure, easy to use.

Optional output signal including: analog quantity, Start/Stop, etc., can be widely used in all kinds of CNC machine tools, such as stamping machinery, building materials machinery, woodworking machinery, etc.

Products Data:



Analog output

Start/Stop output

Parameters

Specifications

Specifications

Stroke lengths

50-2500mm

50-3000mm

Out put

4~20mA,0~10V

 Start/Stop

Resolution

12bit D/A

0.1mm / 0.01mm / 0.005mm

Linearity

< ±0.02%F.S.

< ±0.02%F.S.

Repertability

<±0.002%F.S.

< ±0.002%F.S.

Frequency response

 Range related

Range related

Input voltage

24VDC (-15/+20%)

Operating temperature

- 40℃ ~ +85℃

Protection

IP65

Thread

Clamp ,  M5X20


Outline dimensions:


Wiring:


Status indicator:
