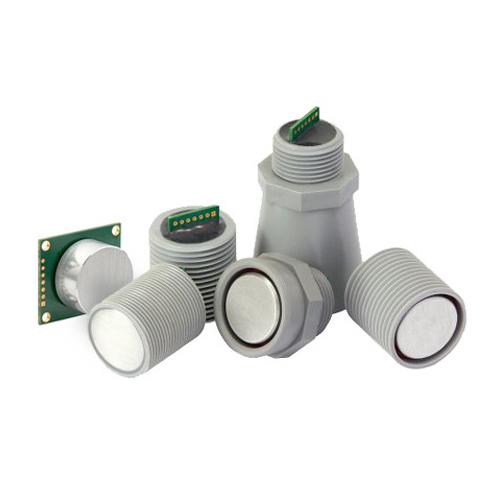

XL-TrashSonar-WR Series High Performance Ultrasonic Trash Sensors
-
Price
Price on request ≥1piece
-
Model Number
MB7137, MB7138, MB7139 -
Data Sheet
-
Package
Original packaging -
Specs
MB7137, MB7138, MB7139 -
Quantity
- +Send Inquiry
Find Similar Products
-
LV-MaxSonar-EZ1 High Performance Ultrasonic Rangefinder
Model Number：MB1010
MOQ：1
-
USB-CarSonar-WR USB Ultrasonic Proximity Sensor
Model Number：MB8450
MOQ：1
-
I2CXL-MaxSonar-EZ Series Industrial Indoor Ultrasonic Sensors MB1202, MB1212
Model Number：MB1222, MB1232, MB1242
MOQ：1
-
XL-MaxSonar-WR Series Ultrasonic Sensor MB7051, MB7052, MB7060, MB7062, MB7070
Model Number：MB7072, MB7076, MB7092
MOQ：1
-
LV-MaxSonar-EZ0 High Performance Ultrasonic Rangefinder
Model Number：MB1000
MOQ：1
-
ParkSonar-EZ Series Ultrasonic Proximity Sensors MB1001, MB1002, MB1005, MB1006
Model Number：MB1007, MB1008, MB1009
MOQ：1
Product Description
XL-TrashSonar-WR Series
IP67 Weather Resistant, Ultrasonic Trash Sensor
MB7137, MB7138, MB7139
XL-TrashSonar-WR Series Ultrasonic Trash Sensor Product Description
The XL-TrashSonar-WR sensor series provide users with robust range information in air. These sensors also feature high-power acoustic output along with real-time auto calibration for changing conditions (supply voltage sag, acoustic noise, or electrical noise), operation with supply voltage from 3.0V to 5.5V, object detection from 0-cm to 350-cm, and sonar range information from 20-cm out to 350-cm with 1-cm resolution. Objects from 0-cm to 20-cm typically range as 20-cm. ( 25cm for the MB7138) The sensor is housed in a robust PVC housing, designed to meet the IP67 water intrusion standard. This sensor line is available in the following package types — 3/4" PVC threading, 1" NPS pipe threading, 1" BSPP pipe threading, and 30mm 1.5 pipe threading.
The user interface formats included are pulse-width, analog voltage output, RS232 serial output, and I2C (MB7137).
XL-TrashSonar-WR Series Ultrasonic Trash Sensor Features
• Real-time auto calibration and noise rejection
• High acoustic power output
• Precise narrow beam
• Object detection includes zero range objects
• 3V to 5.5V supply with very low average current draw
• Free run operation can continually measure and output range information
• Triggered operation provides the range reading as desired
• All interfaces are active simultaneously
• RS232 Serial, 0 to Vcc, 9600 Baud, 81N (MB7138, MB7139)
• I2C Bus operates up to 400KHz with clock stretching (MB7137)
• Analog, (Vcc/1024) / cm (MB7138, MB7139)
• Sensor operates at 42KHz
XL-TrashSonar-WR Series Ultrasonic Trash Sensor Benefits
• Acoustic and electric noise resistance
• Reliable and stable range data
• Robust, low cost IP67 standard sensor
• Narrow beam characteristics
• Very low power excellent for battery based systems
• Ranging can be triggered externally or internally
• Sensor reports the range reading directly, frees up user processor
• Easy hole mounting or mating with standard electrical fittings
• Filtering allows very reliable operation in most environments
XL-TrashSonar-WR Series Ultrasonic Trash Sensor Applications & Uses
• Tank level measurement
• Bin level measurement
• Trash level measurement
• Environments with acoustic and electrical noise
• Distance measuring
• Long range object detection
• Industrial sensor
• -40°C to +65°C operation
XL-TrashSonar-WR Series Ultrasonic Trash Sensor Part Numbers
All part numbers are a combination of a six-character base followed by a dash and a three-digit product code. Please review the following table for more information on the three-digit product code.
The following tables display all of the active and valid part numbers for these products.
