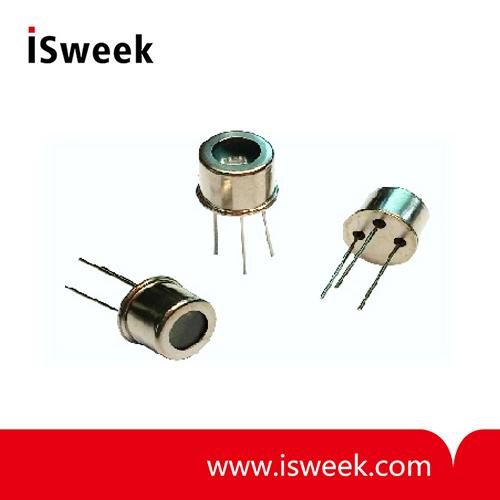

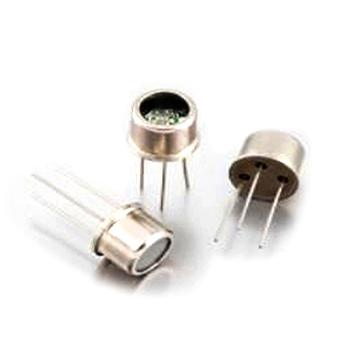

UV Sensor Module
-
Price
Price on request ≥1piece
-
Model Number
GUVB-T21GH -
Data Sheet
-
Package
Original packaging -
Specs
GUVB-T21GH -
Quantity
- +Send Inquiry
Find Similar Products
-
Broadband SiC Based UV Photodiode A = 0.06 mm2
Model Number：SG01S-18
MOQ：1
-
Broadband SiC Based UV Photodiode A = 0.06 mm2
Model Number：SG01S-18S
MOQ：1
-
Reflective UV Sensor
Model Number：GenUV-L365P-MM
MOQ：1
-
Reflective UV Sensor
Model Number：GUVF-P12MD
MOQ：1
-
UV-A Sensor
Model Number：GUVA-S12SD
MOQ：1
-
UV-A Sensor
Model Number：GUVA-T11GD
MOQ：1
Product Description
1. GUVB-T21GH UV Sensor Module Features
- Chip size 0.4mm, TO 5 PKG
- Single Supply Voltage Operation
- Voltage Output
- High Sensitivity and Good Solar Blindness
- Small and Compact Size
2. GUVB-T21GH UV Sensor Module Applications
UV-B Lamp Monitoring
UV Index monitoring
3. GUVB-T21GH UV Sensor Module Outline Diagrams and Dimensions
4. GUVB-T21GH UV Sensor Module Absolute Maximum Ratings
Storage Temperature: -40~90℃
Operating Temperature: -30~85℃
Supply Voltage: 5.5V
Soldering Temperature: 260℃
5. GUVB-T21GH UV Sensor Module Characteristics (at 25℃)
Supply Voltage: 1.8~5.5V
Supply Current: 50 µA
Responsivity: 1.3 mV/nW
Spectral Detection Range: 220~320 nm
Output Voltage(1 mW/cm2): 0.93V
Detection Power Range: 0~5.38 mW/cm2
Rising Time: 3ms
