Product Description

GUVx-T1xGS2-I8LW6.1 UV Radiometer 2.0 Description

 Water Environments (10Bar), Display : Absolute Power, Output of Display : Relay, 4-20mA Current

GUVx-T1xGS2-I8LW6.1 UV Radiometer 2.0 Applications
 UV Purification (Water)
 Water treatment

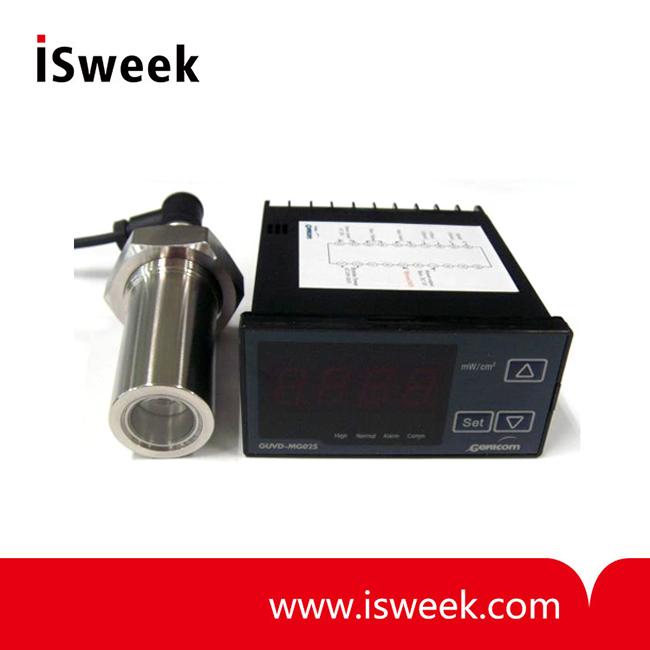

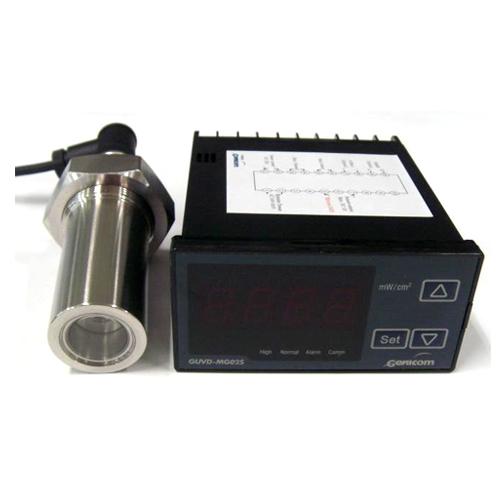

GUVx-T1xGS2-I8LW6.1 UV Radiometer 2.0 Constitution
 Display, Sensor Probe, 5m Cable

GUVx-T1xGS2-I8LW6.1 UV Radiometer 2.0 Case dimensions

Thread/Length for probe hold	Diameter  (mm)	Window  (mm)	Dept  (mm)	Length  (mm)	Weight  (g)	Cable Length  (m)	Material
M36 x 1.5p/12 mm	32	24	59	96	545	5	STS 316-L

GUVx-T1xGS2-I8LW6.1 UV Radiometer 2.0 Absolute Maximum Ratings

Parameter	Value			Unit	Remark
	Min.	Typ.	Max.
Operating Temperature	-30		85	°C	Sensor Probe
	0		50	°C	Display
Power Consumption			5	VA

GUVx-T1xGS2-I8LW6.1 UV Radiometer 2.0 Electro-Optical Characteristics (at 25°C)

Parameter		Value			Unit	Remark
		Min.	Typ.	Max.
Detection Wavelength Range	GUVV-T11GS2-I8LW6.1	230		395	nm
	GUVB-T12GS2-I8LW6.1	220		320	nm
	GUVC-T11GS2-I8LW6.1	220		280	nm	DVGW
Detection Power Range		0		100	mW/cm2

* Maximum of detection power : 20mW/cm² (Option), 100mW/cm² (Standard), 1000mW/cm² (Option)
