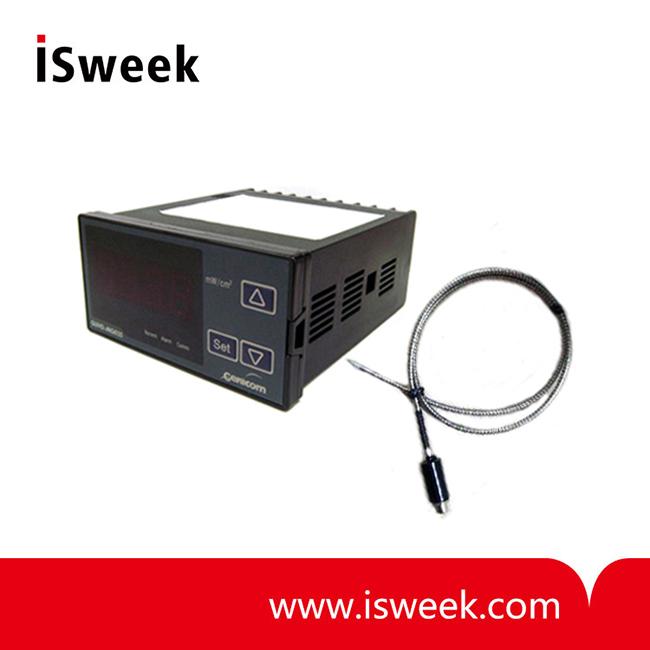

UV Radiometer 2.0
-
Price
Price on request ≥1piece
-
Model Number
GUVx-T1xGS2-I8LO -
Data Sheet
-
Package
Original packaging -
Specs
GUVx-T1xGS2-I8LO -
Quantity
- +Send Inquiry
Find Similar Products
-
Sound Level Meter
Model Number：SL4200
MOQ：1
-
Sound Level Meter
Model Number： SL4201
MOQ：1
-
UV Radiometer 1.0
Model Number：GUVx-T1xGS-3LW5
MOQ：1
-
UV Radiometer 1.0
Model Number：GUVx-T1xGS-3LW10
MOQ：1
-
UV Radiometer 1.0
Model Number：GUVx-T1xGS-3LWLO1.1
MOQ：1
-
UV Radiometer 1.0
Model Number：GUVx-T1xGS-LA2
MOQ：1
Product Description
GUVx-T1xGS2-I8LO UV Radiometer 2.0 Description
High Temperature Environment (under 200°C), Output of Display : Relay, 4-20mA Current
High Temperature Environment (under 200°C), Output of Display : Relay, 4-20mA Current
GUVx-T1xGS2-I8LO UV Radiometer 2.0 Constitution
Display, Optical Fiber + LO Probe, Cable
GUVx-T1xGS2-I8LO UV Radiometer 2.0 Case Dimensions
|
Display |
LO Probe Diameter
(mm) |
LO Probe Length (mm) |
Optical Fiber Length
(m) |
|
|
Size |
Panel Cut Out |
|||
|
95 x 48 x 118 mm3 |
92 x 45 mm2 (-0,+0.6mm) |
20 | 56 | 1 |
GUVx-T1xGS2-I8LO UV Radiometer 2.0 Absolute Maximum Ratings
|
Parameter |
Value |
Unit |
Remark |
||
|
Min. |
Typ. |
Max. |
|||
|
Operating Temperature |
|
|
200 |
°C |
Optical Fiber |
|
-30 |
|
85 |
°C |
LO Probe |
|
|
0 |
|
50 |
°C |
Display |
|
|
Power Consumption |
|
|
5 |
VA |
|
GUVx-T1xGS2-I8LO UV Radiometer 2.0 Electro-Optical Characteristics (at 25 °C)
|
Parameter |
Value |
Unit |
Remark |
|||
|
Min. |
Typ. |
Max |
||||
|
Detection Range |
GUVA-T13GS2-I8LO |
230 |
|
395 | nm |
|
|
GUVC-T11GS2-I8LO |
220 |
|
280 |
nm |
|
|
|
Detection Power Range |
0 |
|
1000 | mW/cm2 |
|
|
