UV Photodiode

ISweek online 2h ago

ISweek_com

Send Inquiry Chat Now

  • Price

    Price on request   ≥1piece

  • Model Number

    EOPD-265-0-0.3-CC

  • Data Sheet

  • Package

    Original packaging

  • Specs

    EOPD-265-0-0.3-CC

  • Quantity

    - +

  • Send Inquiry

Find Similar Products

Product Description

Radiation
 Type
 Technology
 Case
ultraviolet
 UV-glass
 SiC
 TO-52

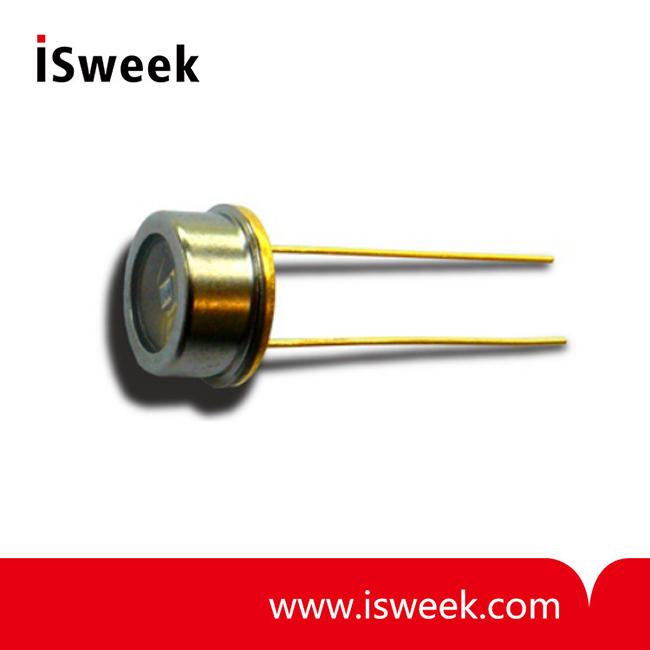

EOPD-265-0-0.3-CC UV Photodiode Description:
Low cost SiC photodiode with high spectral sensitivity in the UV range (205 nm - 355 nm), mounted inhermetically sealed TO-52 package with UV-glass window, RoHS and WEE compliant


EOPD-265-0-0.3-CC UV Photodiode Applications:
• Universal measurements in the UV range
• Sterilization lamp monitoring
• Flame monitoring


EOPD-265-0-0.3-CC UV Photodiode Maximum Ratings

Tamb = 25°C, unless otherwise specified

Parameter  Symbol Value Unit
Chip size A 0.365 x 0.365 mm2
Active area A 0.13 mm2
Reverse voltage VR 20 V
Operating temperature range Tamb -40~125 ℃
Storage temperature range Tstg -40~125 ℃
Acceptance angle at 50% Sλ   φ  260 deg.


EOPD-265-0-0.3-CC UV Photodiode Optical and Electrical Characteristics

Tamb = 25°C, unless otherwise specified

Parameter Test conditions  Symbol Min Typ Max Unit
Dark current VR=1V ID
10
fA
Peak sensitivity wavelength VR=0V λp
265
nm
Responsivity at λP VR=0V Sλ
0.18
A/W
Responsivity at λ=254 nm VR=0V Sλ
0.16
A/W
Sensitivity range at 1% Smax VR=0V λmin , λmax 205
355 nm
Junction capacitance VR=0V CJ
30
pF
Acceptance angle VR=0V ϕ
±40
deg
