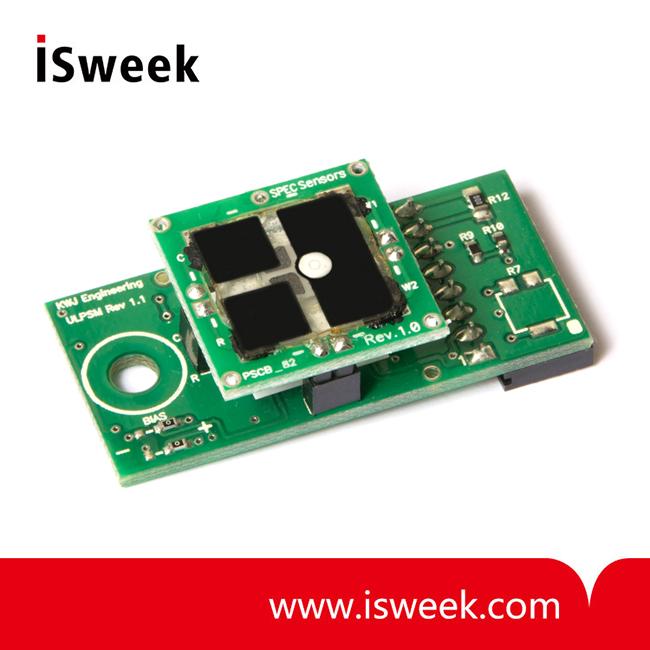

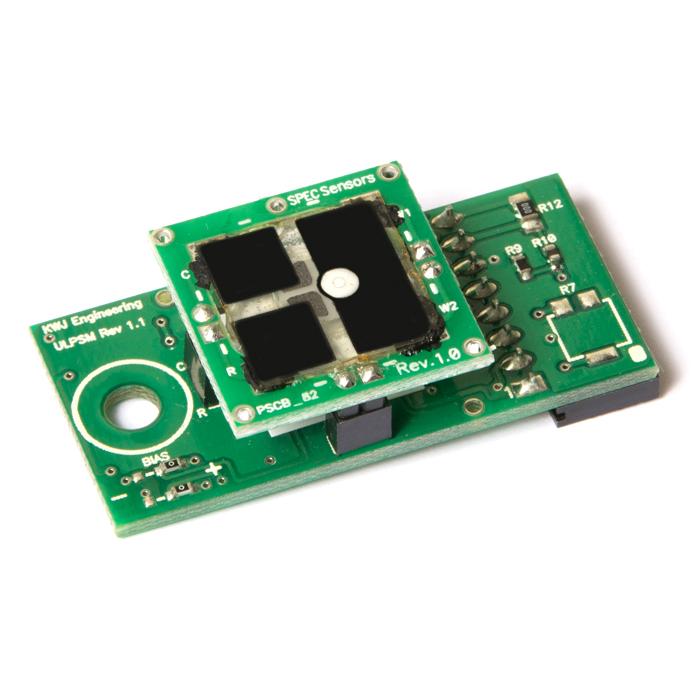

Ultra-Low Power Analog Nitrogen Dioxide Sensor Module
-
Price
Price on request ≥1piece
-
Model Number
ULPSM-NO2 968-047 -
Data Sheet
-
Package
Original packaging -
Specs
ULPSM-NO2 968-047 -
Quantity
- +Send Inquiry
Product Description
ULPSM-NO2 968-047 Ultra-Low Power Analog NO2 Sensor Module Description
NOW with SPEC's new 110-507 NO2 sensor with improved low ppb performance and a filter to remove Ozone.
Quickly integrate Nitrogen Dioxide sensing into your system with very low power consumption and a simple analog sensor signal output. The ULPSM converts the Nitrogen Dioxide sensor’s linear current signal output to a linear voltage signal, while maintaining the sensor at its ideal biased operation settings.
ULPSM-NO2 968-047 Nitrogen Dioxide Sensor NO2 Sensor Module Benefits
• NEW 110-507 NO2 sensor with O3 filter!
• 0 to 3 V Analog Signal Output
• Low Power Consumption < 45 µW
• Fast Response
• On-board Temperature Sensor
• Easy Sensor Replacement
• Standard 8-pin connector
ULPSM-NO2 968-047 Nitrogen Dioxide Sensor NO2 Sensor Module Applications
• Fixed Industrial Safety Monitoring
• Portable Industrial Safety Monitoring
• Portable Personal Safety Monitor
• Indoor Air Quality Monitoring
• Outdoor Air Quality Monitoring
• Air Purification Control
ULPSM-NO2 968-047 Nitrogen Dioxide Sensor NO2 Sensor Module Performance Characteristics
NOW with SPEC's new 110-507 NO2 sensor with improved low ppb performance and a filter to remove Ozone.
Quickly integrate Nitrogen Dioxide sensing into your system with very low power consumption and a simple analog sensor signal output. The ULPSM converts the Nitrogen Dioxide sensor’s linear current signal output to a linear voltage signal, while maintaining the sensor at its ideal biased operation settings.
ULPSM-NO2 968-047 Nitrogen Dioxide Sensor NO2 Sensor Module Benefits
• NEW 110-507 NO2 sensor with O3 filter!
• 0 to 3 V Analog Signal Output
• Low Power Consumption < 45 µW
• Fast Response
• On-board Temperature Sensor
• Easy Sensor Replacement
• Standard 8-pin connector
ULPSM-NO2 968-047 Nitrogen Dioxide Sensor NO2 Sensor Module Applications
• Fixed Industrial Safety Monitoring
• Portable Industrial Safety Monitoring
• Portable Personal Safety Monitor
• Indoor Air Quality Monitoring
• Outdoor Air Quality Monitoring
• Air Purification Control
ULPSM-NO2 968-047 Nitrogen Dioxide Sensor NO2 Sensor Module Performance Characteristics
|
Measurement Range |
0 to 20 ppm |
|
Lower Detection Limit |
< 0.1 ppm |
|
Resolution |
< 0.1 ppm |
|
Accuracy |
< ± 2 % of reading |
|
Response Time T90 |
< 30 seconds |
|
Power-On Stabilization Time |
60 minutes recommended |
