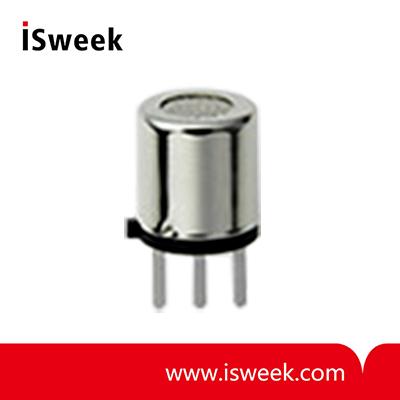

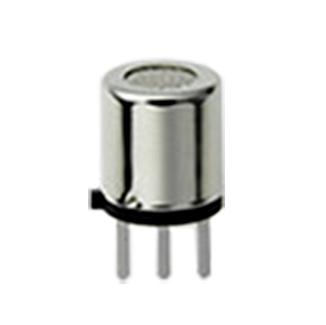

Tin Dioxide Semiconductor Gas Sensor for Refrigerant Detection
-
Price
Price on request ≥1piece
-
Model Number
SB-42A-00 -
Data Sheet
-
Package
Original packaging -
Specs
SB-42A-00 -
Quantity
- +Send Inquiry
Product Description
SB-42A-00 Gas Sensor for Refrigerant Detection Description
The SB-42A-00 is a tin dioxide semiconductor gas sensor which has a high sensitivity to HFCs (e.g. Freon: R134a) with improved cross sensitivity to other gases.
This model is suitable for R134a, R410a, R407c and other new Freon family which contains R134a. A significant feature of low power consumption design 120mW) is advantageous for portable devices.
SB-42A-00 Gas Sensor for Refrigerant Detection Application
• Industrial gas leak detector
SB-42A-00 Gas Sensor for Refrigerant Detection Specifications
The SB-42A-00 is a tin dioxide semiconductor gas sensor which has a high sensitivity to HFCs (e.g. Freon: R134a) with improved cross sensitivity to other gases.
This model is suitable for R134a, R410a, R407c and other new Freon family which contains R134a. A significant feature of low power consumption design 120mW) is advantageous for portable devices.
SB-42A-00 Gas Sensor for Refrigerant Detection Application
• Industrial gas leak detector
SB-42A-00 Gas Sensor for Refrigerant Detection Specifications
|
Standard Operating conditions |
|||
|
Symbol |
Parameter |
Specification |
Conditions etc. |
|
VH |
Heater voltage |
0.9 V ± 0.05V |
AC, DC or pulse |
| VC |
Circuit voltage |
Less than 5 V |
DC: Pin2 (+) - Pin 1 (-) |
| RL |
Load resistance |
Variable (> 200 Ω) |
PS < 10 mW |
| RH |
Heater resistance |
2.8 Ω ± 0.2 Ω |
at room temperature |
| IH |
Heater current |
130 mA |
IH = VH / RH (typical value) |
| PH |
Heater power consumption |
120 mW |
PH = VH2 / RH |
|
PS |
Power dissipation of sensing element |
Less than 10 mW |
PS =(VC - VRL)2/RS |
|
Environmental conditions |
|||
|
Symbol |
Parameter |
Specification |
Conditions etc. |
|
Tao |
Operating temperature |
-10°C to 60°C |
Recommended range |
|
Tas |
Storage temperature |
-20°C to 70°C |
|
|
RH |
Relative humidity |
Less than 95% RH |
|
|
(O2) |
Oxygen concentration |
21% ± 1% (Standard condition) |
Absolute minimum level: more than 18% |
|
The sensitivity characteristics are influenced by the variation in oxygen concentration. |
|||
|
Sensitivity characteristics |
|||
|
Model |
SB-42A-00 (tentative specifications) |
||
|
Symbol |
Parameter |
Specification |
Conditions etc. |
|
RS |
Sensor resistance |
2 kΩ to 20 kΩ |
at 100 ppm of R-134a/air |
|
β |
Ratio of sensor resistance |
0.50 to 0.65 |
Rs at 300 ppm of R-134a Rs at 100 ppm of R-134a |
|
R/Rair |
Resistance change in gas/air |
≤ 0.40 |
Rs at 100 ppm of R-134a
Rs in air
|
|
Standard Test Conditions: |
Temp: 20°C ± 2°C Humidity:65% ± 5% (in clean air) |
VC : 5.0 V ± 1%
VH : 0.9 V ± 1%
RL : 10 kΩ ± 5%
|
|
|
Pre-heating time: more than 48 hours |
|||
|
Mechanical characteristics |
|||
|
Items |
Conditions |
Specifications |
|
|
Vibration |
Frequency: Vertical amplitude: Duration: |
100 cpm 4 mm 1 hour |
Should satisfy the specifications shown in the sensitivity characteristics after test. |
|
Shock |
Acceleration: Number of impacts: |
100 G 5 times |
|
