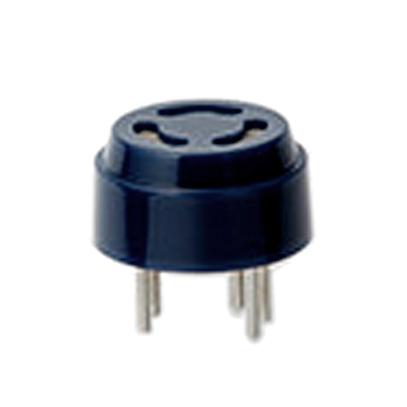

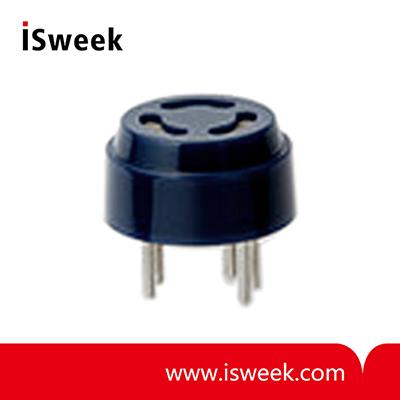

SP-15A-00 Gas Sensor for LPG Detection Description
The SP-15A is a tin dioxide semiconductor gas sensor which has a high sensitivity and excellent selectivity in propane/ butane detection.
The SP-15A has also a significant feature in good stability after exposure to silicone compounds. Using the SP-15A, the most reliable LPGas leak detection can be achieved.
SP-15A-00 Gas Sensor for LPG Detection Application
• Home gas leak detector
SP-15A-00 Gas Sensor for LPG Detection Specifications
The SP-15A is a tin dioxide semiconductor gas sensor which has a high sensitivity and excellent selectivity in propane/ butane detection.
The SP-15A has also a significant feature in good stability after exposure to silicone compounds. Using the SP-15A, the most reliable LPGas leak detection can be achieved.
SP-15A-00 Gas Sensor for LPG Detection Application
• Home gas leak detector
SP-15A-00 Gas Sensor for LPG Detection Specifications
|
Standard Operating conditions |
|||
|
Symbol |
Parameter |
Specification |
Conditions etc. |
|
VH |
Heater voltage |
5.0 V ± 4 % |
AC or DC |
| VC |
Circuit voltage |
5.0 V ± 4 % |
DAC or DC |
| RL |
Load resistance |
Variable |
PS < 15 mW |
| RH |
Heater resistance |
42 Ω ± 2 Ω |
at room temperature |
| PH |
Heater power consumption |
380 mW (Typical value) |
PH = VH2 / RH |
| PS |
Power dissipation of sensing element |
Less than 15 mW |
PS = (VC - VRL)2 / RS |
|
Environmental conditions |
|||
|
Symbol |
Parameter |
Specification |
Conditions etc. |
|
Tao |
Operating temperature |
-10°C to 60°C |
Recommended range |
|
Tas |
Storage temperature |
-20°C to 70°C |
|
|
RH |
Relative humidity |
Less than 95% RH |
|
|
(O2) |
Oxygen concentration |
21% ± 1% (Standard condition) |
Absolute minimum level: more than 18% |
|
The sensitivity characteristics are influenced by the variation in oxygen concentration. Please consult FIS for details. |
|||
|
Sensitivity characteristics |
|||
|
Model |
SB-15-00 |
||
|
Symbol |
Parameter |
Specification |
Conditions etc. |
|
RS |
Sensor resistance |
4 kΩ to 15 kΩ |
at 1500 ppm of iso-butane/air |
|
β |
Sensitivity slope |
0.60 to 0.75 |
Rs (at IB 3000 ppm) Rs (at IB 1500 ppm) |
|
Standard Test Conditions: |
Temp: 20°C ± 2°C Humidity:65% ± 5% (in clean air) |
VC : 5.0 V ± 1%
VH : 5.0 V ± 1%
RL : 10 kΩ ± 5%
|
|
|
Pre-heating time: more than 48 hours |
|||
|
Mechanical characteristics |
|||
|
Items |
Conditions |
Specifications |
|
|
Vibration |
Frequency: Vertical amplitude: Duration: |
100 cpm 4 mm 1 hour |
Should satisfy the specifications shown in the sensitivity characteristics. |
|
Shock |
Acceleration: Number of impacts: |
100 G 5 times |
|
