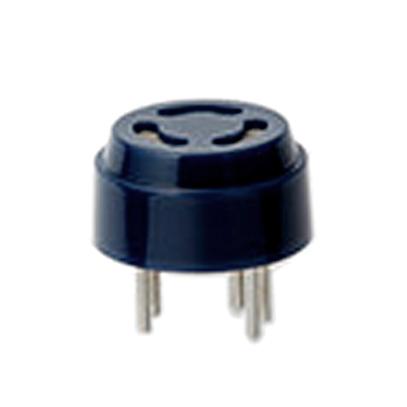

Tin Dioxide Semiconductor Gas Sensor for Hydrogen Detection
-
Price
Price on request ≥1piece
-
Model Number
SP-19-01 -
Data Sheet
-
Package
Original packaging -
Specs
SP-19-01 -
Quantity
- +Send Inquiry
Product Description
SP-19-01 Hydrogen Sensor H2 Sensor Description
The SP-19-01 is a tin dioxide semiconductor gas sensor which has a high sensitivity and selectivity to hydrogen.
Using this model, detection of hydrogen is possible from low concentration ranges.
SP-19-01 Hydrogen Sensor H2 Sensor Application
• Industrial gas leak detector
SP-19-01 Hydrogen Sensor H2 Sensor Specifications
The SP-19-01 is a tin dioxide semiconductor gas sensor which has a high sensitivity and selectivity to hydrogen.
Using this model, detection of hydrogen is possible from low concentration ranges.
SP-19-01 Hydrogen Sensor H2 Sensor Application
• Industrial gas leak detector
SP-19-01 Hydrogen Sensor H2 Sensor Specifications
|
Standard Operating conditions |
|||
|
Symbol |
Parameter |
Specification |
Conditions etc. |
|
VH |
Heater voltage |
5.0 V ± 4 % |
AC or DC |
| VC |
Circuit voltage |
5.0 V ± 4 % |
AC or DC |
| RL |
Load resistance |
Variable |
PS < 15 mW |
| RH |
Heater resistance |
56 Ω ± 2 Ω |
at room temperature |
| PH |
Heater power consumption |
315 mW (Typical value) |
PH = VH2 / RH |
|
PS |
Power dissipation of sensing element |
Less than 15 mW |
PS =(VC - VRL)2/RS |
|
Environmental conditions |
|||
|
Symbol |
Parameter |
Specification |
Conditions etc. |
|
Tao |
Operating temperature |
-10°C to 60°C |
Recommended range |
|
Tas |
Storage temperature |
-20°C to 70°C |
|
|
RH |
Relative humidity |
Less than 95% RH |
|
|
(O2) |
Oxygen concentration |
21% ± 1% (Standard condition) |
Absolute minimum level: more than 18% |
|
The sensitivity characteristics are influenced by the variation in oxygen concentration. |
|||
|
Sensitivity characteristics |
|||
|
Model |
SP-19-01 |
||
|
Symbol |
Parameter |
Specification |
Conditions etc. |
|
RS |
Sensor resistance |
0.5 kΩ to 5 kΩ |
Hydrogen 100 ppm/ air |
|
β |
Sensitivity slope |
0.60 to 1.20 |
log(Rs(1000 ppm) / Rs(100 ppm)) log(1000/100) |
|
Standard Test Conditions: |
Temp: 20°C ± 2°C Humidity:65% ± 5% (in clean air) |
VC : 10.0 V ± 1%
VH : 5.0 V ± 1%
RL : 3.9 kΩ ± 5%
|
|
|
Pre-heating time: more than 48 hours |
|||
|
Mechanical characteristics |
|||
|
Items |
Conditions |
Specifications |
|
|
Vibration |
Frequency: Vertical amplitude: Duration: |
100 cpm 4 mm 1 hour |
Should satisfy the specifications shown in the sensitivity characteristics. |
|
Shock |
Acceleration: Number of impacts: |
100 G 5 times |
|
